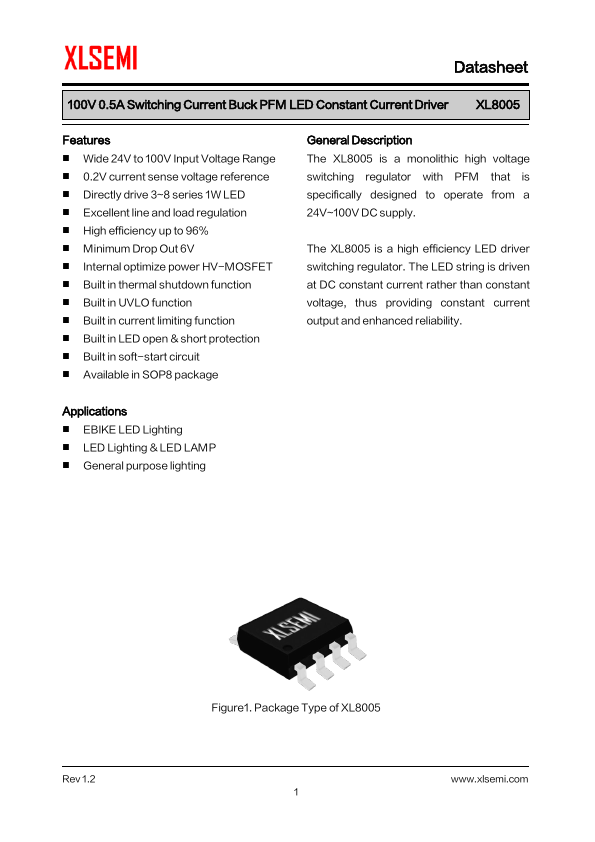

Datasheet Summary
100V 0.5A Switching Current Buck PFM LED Constant Current Driver XL8005
Features
- Wide 24V to 100V Input Voltage Range
- 0.2V current sense voltage reference
- Directly drive 3~8 series 1W LED
- Excellent line and load regulation
- High efficiency up to 96%
- Minimum Drop Out 6V
- Internal optimize power HV-MOSFET
- Built in thermal shutdown function
- Built in UVLO function
- Built in current limiting function
- Built in LED open & short protection
- Built in soft-start circuit
- Available in SOP8 package
General Description The XL8005 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 24V~100V DC supply.
The XL8005 is a...
