XL8002 Datasheet 80V 1A High Efficiency Buck PFM LED Constant Current Driver

Manufacturer: XLSEMI

📥 Download Datasheet

Datasheet Details

Part number XL8002
Manufacturer XLSEMI
File Size 266.69 KB
Description 80V 1A High Efficiency Buck PFM LED Constant Current Driver
Download XL8002 Download (PDF)

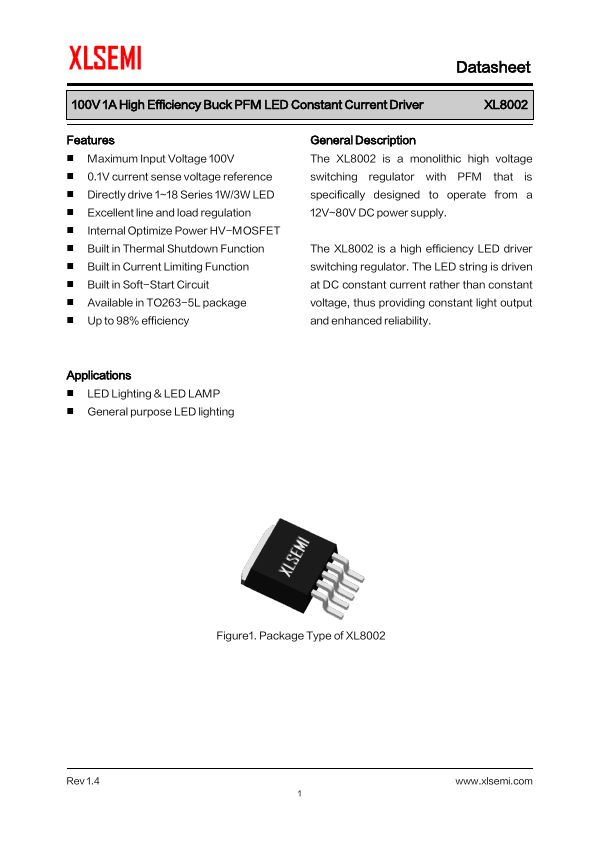

General Description

The XL8002 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 12V~80V DC power supply.

The XL8002 is a high efficiency LED driver switching regulator.

The LED string is driven at DC constant current rather than constant voltage, thus providing constant light output and enhanced reliability.

Overview

XLSEMI Datasheet 80V 1A High Efficiency Buck PFM LED Constant Current Driver.

Key Features

  • Operation Voltage DC 12V~80V.
  • 0.1V current sense voltage reference.
  • Directly drive 1~18 Series 1W/3W LED.
  • Excellent line and load regulation.
  • Internal Optimize Power HV-MOSFET.
  • Built in Thermal Shutdown Function.
  • Built in Current Limiting Function.
  • Built in Soft-Start Circuit.
  • Available in TO263-5L package.
  • Up to 98% efficiency. General.
