XR20P07D - P-Ch 18V Fast Switching MOSFETs

Datasheet Summary

Description

The XR20P07D is the high cell density trenched Pch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.

The XR20P07D meet the RoHS and Green Product requirement with full function reliability approved.

📥 Download Datasheet

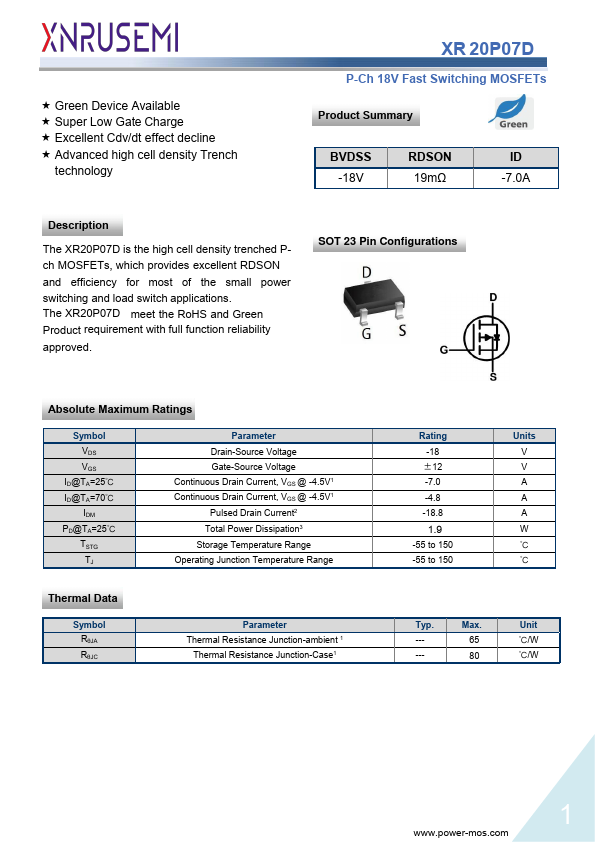

Datasheet preview – XR20P07D

Datasheet Details

Part number XR20P07D
Manufacturer XNRUSEMI
File Size 687.14 KB
Description P-Ch 18V Fast Switching MOSFETs
Datasheet download datasheet XR20P07D Datasheet

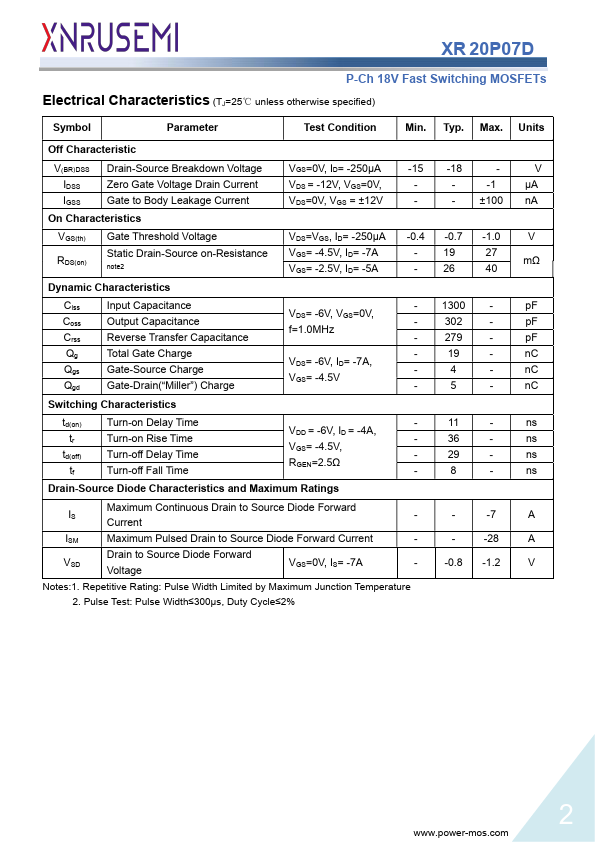

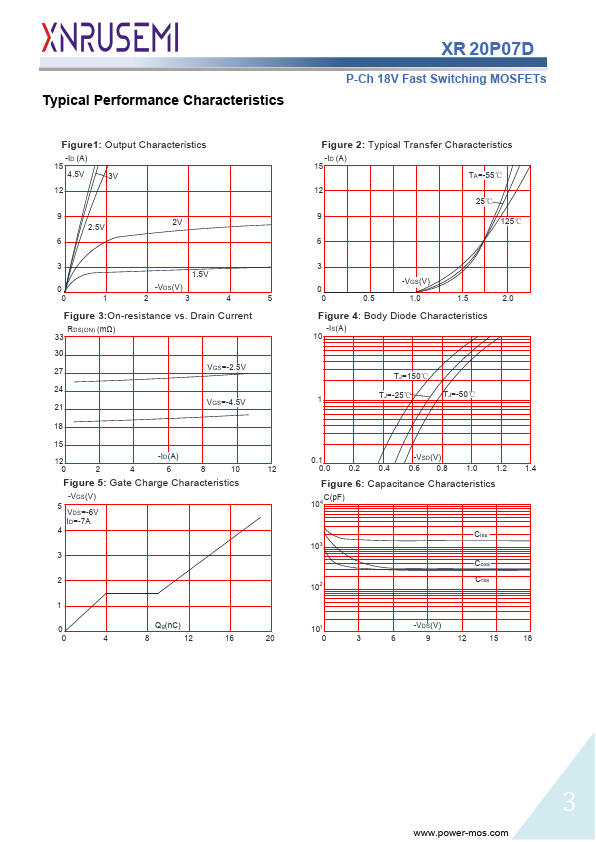

Additional preview pages of the XR20P07D datasheet.

📁 Similar Datasheet

  • XR2001 - High Voltage / High Current Darlington Transistor Arrays (Exar)
  • XR2002 - High Voltage / High Current Darlington Transistor Arrays (Exar)
  • XR2003 - High Voltage / High Current Darlington Transistor Arrays (Exar)
  • XR2004 - High Voltage / High Current Darlington Transistor Arrays (Exar)
  • XR2008 - Rail-to-Rail Amplifiers (Exar)
  • XR2009 - Rail-to-Rail Amplifiers (Exar)
  • XR205 - Monolithic Waveform Generator (Exar)
  • XR20M1170 - I2C/SPI UART (MaxLinear)
  • XR20M1170 - I2C/SPI UART (Exar Corporation)
  • XR20M1172 - TWO CHANNEL I2C/SPI UART (MaxLinear)
Other Datasheets by XNRUSEMI

    Full PDF Text Transcription

    Click to expand full text
     Green Device Available  Super Low Gate Charge  Excellent Cdv/dt effect decline  Advanced high cell density Trench technology XR 20P07D P-Ch 18V Fast Switching MOSFETs Product Summary BVDSS -18V RDSON 19mΩ ID -7.0A Description The XR20P07D is the high cell density trenched Pch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications. The XR20P07D meet the RoHS and Green Product requirement with full function reliability approved. SOT 23 Pin Configurations Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ -4.5V1 Continuous Drain Current, VGS @ -4.
