XR4435B P-Ch 30V Fast Switching MOSFETs

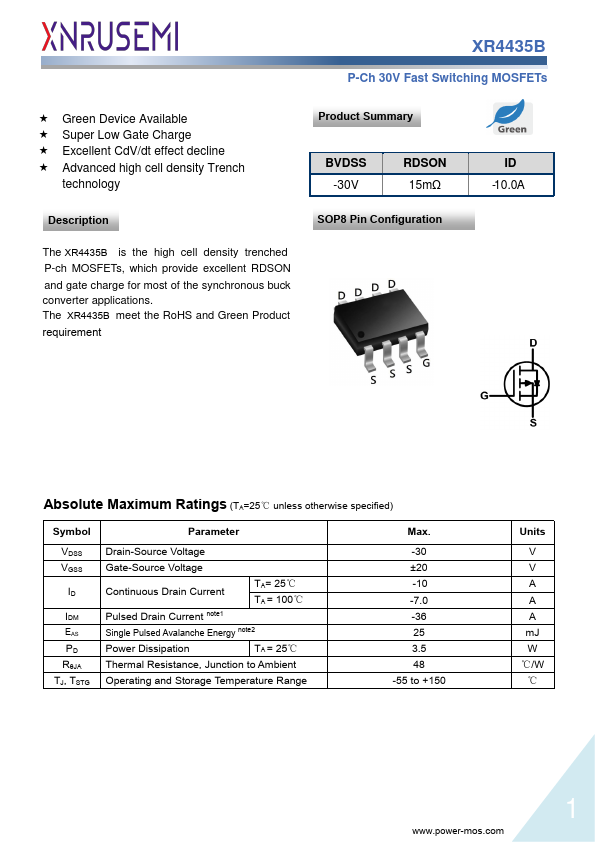

📥 Download Datasheet Datasheet Preview Page 1

Description

XR4435B P-Ch 30V Fast Switching MOSFETs * Green Device Available * Super Low Gate Charge * Excellent CdV/dt effect decline * Advanced.
The XR4435B is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter a.

📥 Download Datasheet

Preview of XR4435B PDF

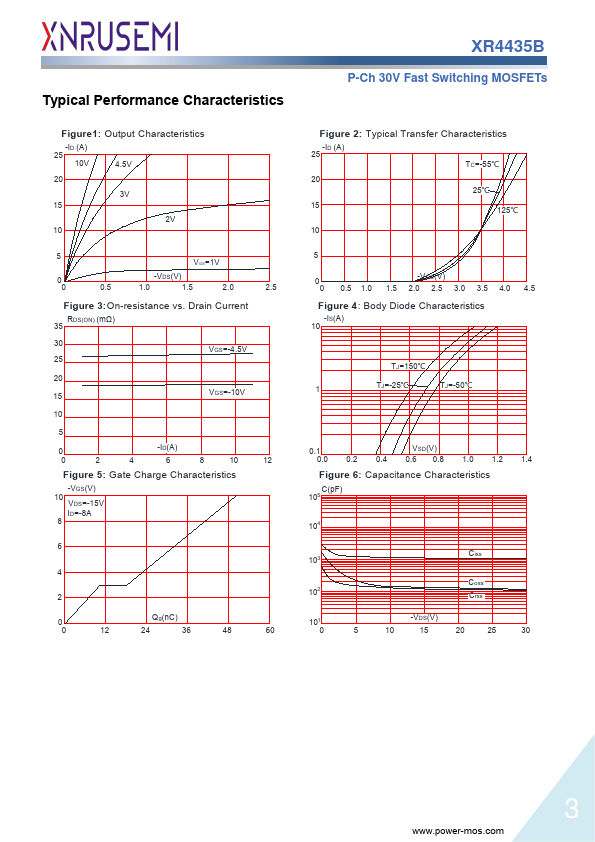

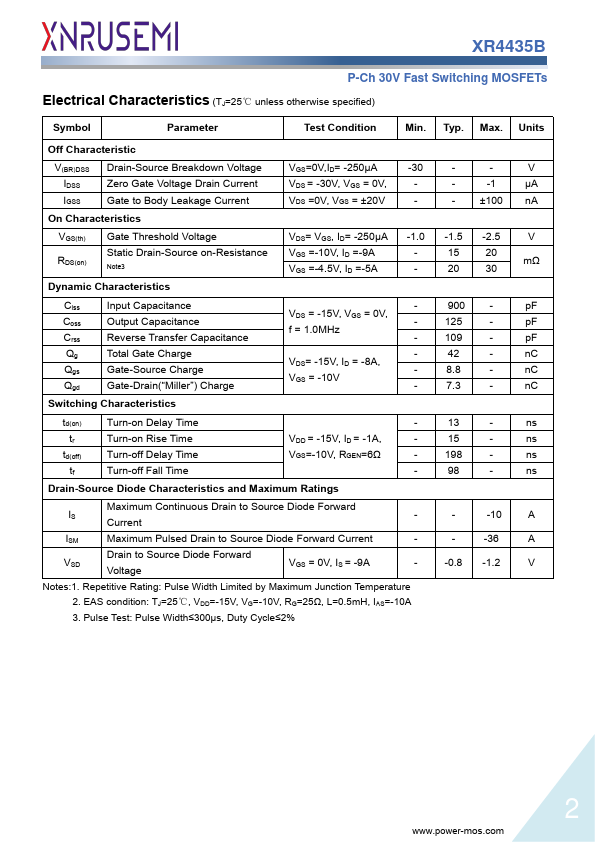

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XR4435B
Manufacturer
XNRUSEMI
File Size
669.15 KB
Datasheet
XR4435B-XNRUSEMI.pdf
Description
P-Ch 30V Fast Switching MOSFETs

Applications

* The XR4435B meet the RoHS and Green Product requirement SOP8 Pin Configuration ID -10.0A Absolute Maximum Ratings (TA=25℃ unless otherwise specified) Symbol VDSS VGSS ID IDM EAS PD RθJA TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA= 25℃ TA = 100℃
