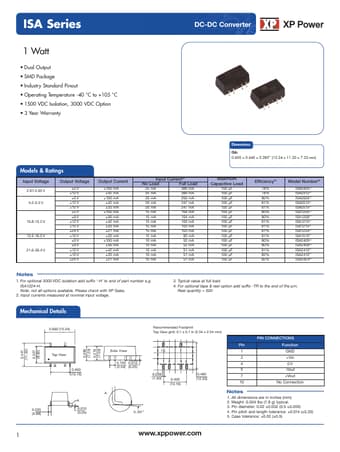

ISA Series 1 Watt xxx Dual Output Series SMD Package Industry Standard Pinout Operating Temperature -40 °C to +105 °C 1500 VDC Isolation, 3000 VDC Option 3 Year Warranty DC-DC Converter Models & Ratings Input Voltage 2.97-3.63 V 4.5-5.5 V 10.8-13.2 V 13.5-16.5 V 21.6-26.4 V Output Voltage ±5 V ±12 V ±5 V ±12 V ±15 V ±5 V ±9 V ±12 V ±15 V ±24 V ±15 V ±5 V ±9 V ±12 V ±15 V ±24 V Output Current ±100 mA ±42 mA ±100 mA ±42 mA ±33 mA ±10
Datasheet Details
Part number:
ISA0312, ISA0305
Manufacturer:
XP Power
File Size:
396.98 KB
Description:
Dc-dc converter.
Note:
This datasheet PDF includes multiple part numbers: ISA0312, ISA0305.
Please refer to the document for exact specifications by model.
