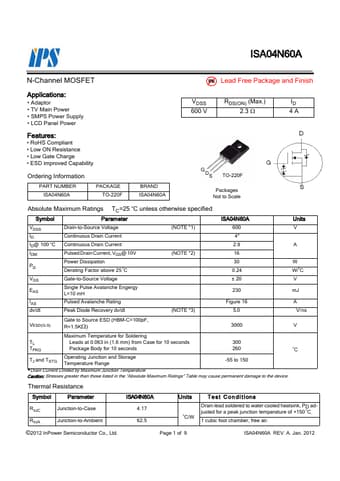

ISA04N60A Datasheet, Mosfet, IPS

ISA04N60A Features

• Mosfet
• RoHS Compliant
• Low ON Resistance
• Low Gate Charge
• ESD improved Capability Ordering Information PART NUMBER ISA04N60A PACKAGE TO-220F BRAND ISA

PDF File Details

Part number:

ISA04N60A

Manufacturer:

IPS

File Size:

145.58kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

ISA04N60A Application

• Applications
• Adaptor
• TV Main Power
• SMPS Power Supply
• LCD Panel Power VDSS 600 V RDS(ON) (Max.) 2.3 : ID
