ISL4805A DC-DC Converter

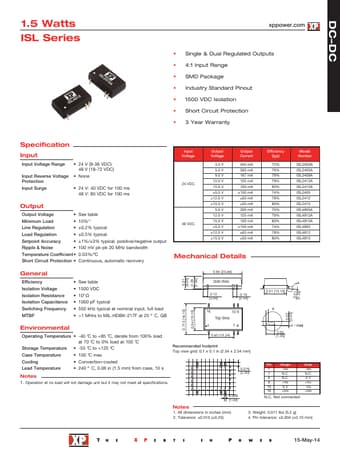

DC DC 1.5 Watts ISL Series xppower.com Single & Dual Regulated Outputs 4:1 Input Range SMD Package Industry Standard Pinout 1500 VDC Isolation Short Circuit Protection 3 Year Warranty Specification Input Input Voltage Range Input Reverse Voltage Protection Input Surge 24 V (9-36 VDC) 48 V (18-72 VDC) None 24 V: 40 VDC for 100 ms 48 V: 80 VDC for 100 ms Output Output Voltage See .

ISL2403A-XPPower.pdf

ISL4805A Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL4805A, ISL2403A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISL4805A, ISL2403A

Manufacturer:

XP Power

File Size:

202.53 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: ISL4805A, ISL2403A.
Please refer to the document for exact specifications by model.
