ISL41387, ISL81387 Datasheet - Renesas

ISL41387 Dual Protocol (RS-232/RS-485) Transceivers

DATASHEET ISL81387, ISL41387 ±15kV ESD Protected, 5V, Dual Protocol (RS-232/RS-485) Transceivers FN6201 Rev 4.00 June 9, 2014 These devices are BiCMOS interface ICs that are user configured as either a single RS-422, RS-485 differential transceiver, or as a dual (2 Tx, 2 Rx) RS-232 transceiver. In RS-232 mode, the on-board charge pump generates RS-232 compliant ±5V Tx output levels, from a supply as low as 4.5V. Four small 0.1µF capacitors are required for the charge pump. The transceivers ar.

ISL41387 Features

* "full fail-safe" operation, so the Rx output remains in a high state if the inputs are open or shorted together. The RS-485 transmitter supports up to three data rates, two of which are slew rate limited for problem free communications. The charge pump disables in

ISL81387-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL41387, ISL81387. Please refer to the document for exact specifications by model.

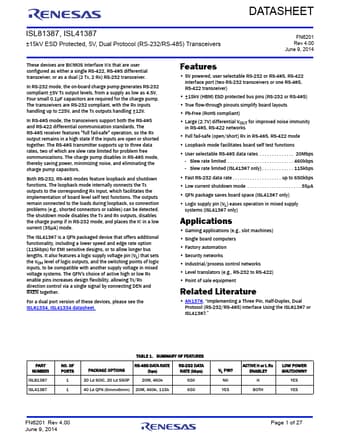

ISL41387 Datasheet Preview Page 2 ISL41387 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL41387, ISL81387

Manufacturer:

Renesas ↗

File Size:

1.40 MB

Description:

Dual protocol (rs-232/rs-485) transceivers.

Note:

This datasheet PDF includes multiple part numbers: ISL41387, ISL81387.
Please refer to the document for exact specifications by model.
