ISL4485

15kV ESD Protected/ 20Mbps/ 5V/ Low Power/ RS-485/RS-422 Transceiver

Intersil Corporation

ISL4485 Features

* High Data Rates. . . . . . . . . . . . . . . . . . . . . up to 20Mbps

* RS-485 I/O Pin ESD Protection . . . . . . . . . . ±15kV HBM - Class 3 ESD Level on all Other Pins . . . . . . >7kV HBM

* Operates from a Single +5V Supply (10% Tolerance)

* 1 Unit Load Allows up

ISL4485 General Description

PIN RO RE DE DI GND A/Y FUNCTION Receiver output: If A > B by at least 0.2V, RO is high; If A < B by 0.2V or more, RO is low; RO = High if A and B are unconnected (floating). Receiver output enable. RO is enabled when RE is low; RO is high impedance when RE is high. Driver output enable. The driver.

ISL4485 Datasheet (377.22 KB)

ISL4485 Datasheet Preview — Preview of ISL4485 PDF

Datasheet Details

Part number:

ISL4485

Manufacturer:

Intersil Corporation

File Size:

377.22 KB

Description:

15kv esd protected/ 20mbps/ 5v/ low power/ rs-485/rs-422 transceiver.

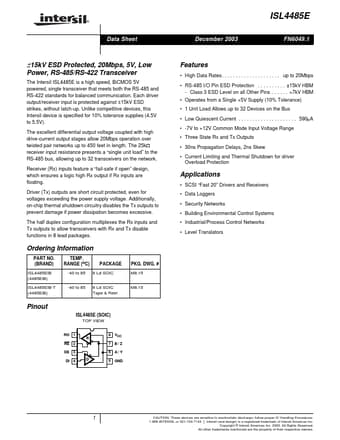

® ISL4485E Data Sheet December 2003 FN6049.1 ±15kV ESD Protected, 20Mbps, 5V, Low Power, RS-485/RS-422 Transceiver The Intersil ISL4485E is a high s.
