ISL4485E Datasheet - Renesas

ISL4485E RS-485/RS-422 Transceiver

DATASHEET ISL4485E ±15kV ESD Protected, 20Mbps, 5V, Low Power, RS-485/RS-422 Transceiver FN6049 Rev 4.00 Oct 8, 2018 The ISL4485E is a high speed, BiCMOS 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. Each driver output/receiver input is protected against ±15kV ESD strikes without latch-up. Unlike competitive devices, this device is specified for 10% tolerance supplies (4.5V to 5.5V). The excellent differential output voltage coupled.

ISL4485E Datasheet (726.05 KB)

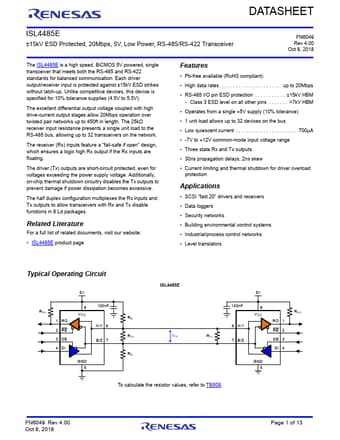

Preview of ISL4485E PDF

Datasheet Details

Part number:

ISL4485E

Manufacturer:

Renesas ↗

File Size:

726.05 KB

Description:

Rs-485/rs-422 transceiver.
