XPT2232, XPT2231 Datasheet - XPTEK

XPT2232, XPT2231, Zero Drift Op-amp

.
The XPTEK XPT2231/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift.

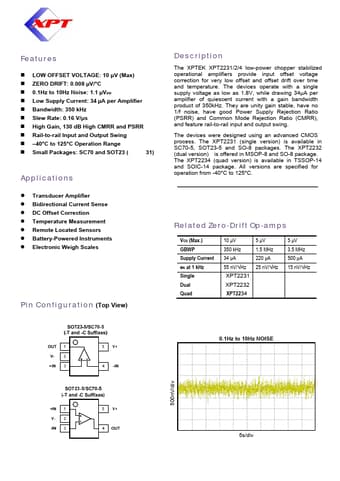

datasheet Preview Page 1 from Datasheet4u.com

XPT2231-XPTEK.pdf

XPT2232 Datasheet Preview — This datasheet PDF includes multiple part numbers: XPT2232, XPT2231. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

XPT2232, XPT2231

Manufacturer:

XPTEK

File Size:

391.25 KB

Description:

Zero Drift Op-amp

Note:

This datasheet PDF includes multiple part numbers: XPT2232, XPT2231.
Please refer to the document for exact specifications by model.

Features

* LOW OFFSET VOLTAGE: 10 μV (Max)
* ZERO DRIFT: 0.008 µV/°C
* 0.1Hz to 10Hz Noise: 1.1 µVPP
* Low Supply Current: 34µA per Amplifier
* Bandwidth: 350 kHz
* Slew Rate: 0.16 V/μs
* High Gain, 130 dB High CMRR and PSRR
* Rail-to-rail Input and Output Swing

Applications

* Transducer Amplifier
* Bidirectional Current Sense
* DC Offset Correction
* Temperature Measurement
* Remote Located Sensors
* Battery-Powered Instruments
