XPT2291E, XPT2291 - Precision Op-amp

XPTEK

📥 Download Datasheet

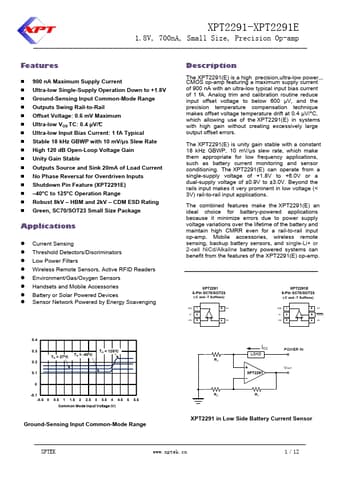

XPT2291E Datasheet Preview — This datasheet PDF includes multiple part numbers: XPT2291E, XPT2291. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XPT2291E, XPT2291
Manufacturer	XPTEK
File Size	420.11 KB
Description	Precision Op-amp
Datasheet	XPT2291-XPTEK.pdf
Note	This datasheet PDF includes multiple part numbers: XPT2291E, XPT2291. Please refer to the document for exact specifications by model.

XPT2291E Product details

Features

900 nA Maximum Supply Current.
Ultra-low Single-Supply Operation Down to +1.8V.
Ground-Sensing Input Common-Mode Range.
Outputs Swing Rail-to-Rail.
Offset Voltage: 0.6 mV Maximum.
Ultra-low VOS TC: 0.4 μV/°C.
Ultra-low Input Bias Current: 1 fA Typical.
Stable 18 kHz GBWP with 10 mV/μs Slew Rate.
High 120 dB Open-Loop Voltage Gain.
Unity Gain Stable.
Outputs Source and Sink 20mA of Load Current.
No Phase Reversal for Overdriven Inputs.
