X24C08 - Serial E2PROM

Xicor

📥 Download Datasheet

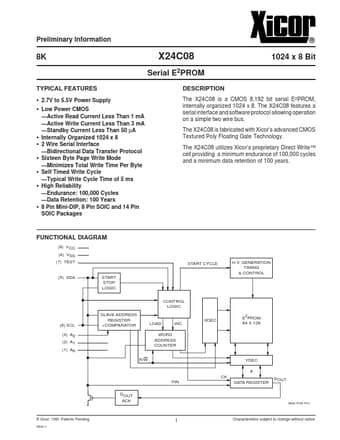

X24C08 Datasheet Preview — Preview of X24C08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	X24C08
Manufacturer	Xicor
File Size	57.10 KB
Description	Serial E2PROM
Datasheet	X24C08_XicorInc..pdf

X24C08 Product details

Description

The X24C08 is a CMOS 8,192 bit serial E2PROM, internally organized 1024 x 8.

Features

2.7V to 5.5V Power Supply.
Low Power CMOS.
Active Read Current Less Than 1 mA.
Active Write Current Less Than 3 mA.
Standby Current Less Than 50 µA.
Internally Organized 1024 x 8.
2 Wire Serial Interface.
Bidirectional Data Transfer Protocol.
Sixteen Byte Page Write Mode.
Minimizes Total Write Time Per Byte.
Self Timed Write Cycle.
Typical Write Cycle Time of 5 ms.
High Reliability.
