X24C45 - Serial AUTOSTORE NOVRAM

Datasheet Summary

Description

The Xicor X24C45 is a serial 256 bit NOVRAM featuring a static RAM configured 16 x 16, overlaid bit-by-bit with a nonvolatile E2PROM array.

The X24C45 is fabricated with Xicor’s Advanced CMOS Floating Gate technology.

Xicor

📥 Download Datasheet

Datasheet Details

Part number	X24C45
Manufacturer	Xicor
File Size	58.20 KB
Description	Serial AUTOSTORE NOVRAM
Datasheet	X24C45 Datasheet
Additional preview pages of the X24C45 datasheet.

📁 Similar Datasheet

Other Datasheets by Xicor

X24C44 - Serial Nonvolatile Static RAM
X24C00 - Serial E2PROM
X24C01 - Serial E2PROM
X24C01A - Serial E2PROM
X24C02 - Serial E2PROM
X24C04 - Serial E2PROM
X24C08 - Serial E2PROM
X24C16 - Serial E2PROM

Full PDF Text Transcription

Click to expand full text

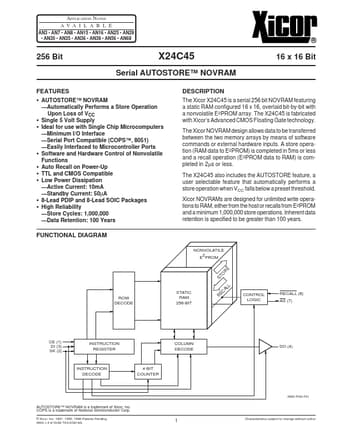

APPLICATION NOTES A V A I L A B L E AN3 • AN7 • AN8 • AN15 • AN16 • AN25 • AN29 • AN30 • AN35 • AN36 • AN39 • AN56 • AN69 X24C45 256 Bit X24C45 Serial AUTOSTORE™ NOVRAM 16 x 16 Bit FEATURES DESCRIPTION The Xicor X24C45 is a serial 256 bit NOVRAM featuring a static RAM configured 16 x 16, overlaid bit-by-bit with a nonvolatile E2PROM array. The X24C45 is fabricated with Xicor’s Advanced CMOS Floating Gate technology. The Xicor NOVRAM design allows data to be transferred between the two memory arrays by means of software commands or external hardware inputs. A store operation (RAM data to E2PROM) is completed in 5ms or less and a recall operation (E2PROM data to RAM) is completed in 2µs or less.
