X2804C - 5 Volt/ Byte Alterable E2PROM

X2804C Description

X2804C 4K X2804C 5 Volt, Byte Alterable E2PROM .
512 x 8 Bit FEATURES. 90ns Access Time Simple Byte and Page Write.

X2804C Features

* 90ns Access Time Simple Byte and Page Write
* Single 5V Supply
* No External High Voltages or VPP Control Circuits
* Self-Timed
* No Erase Before Write
* No Complex Programming Algorithms

X2804C Applications

* requiring extended endurance. Inherent data retention is greater than 100 years. PIN CONFIGURATION PLASTIC DIP A7 A6 A5 A4 A3 A2 A1 A0 I/O0 I/O1 I/O2 VSS 1 2 3 4 5 6 7 8 9 10 11 12 X2804C 24 23 22 21 20 19 18 17 16 15 14 13 VCC A8 NC WE OE NC CE I/O7 I/O6 I/O5 I/04 I/O3 6612 FHD F02.1 ©Xicor, Inc.

📥 Download Datasheet

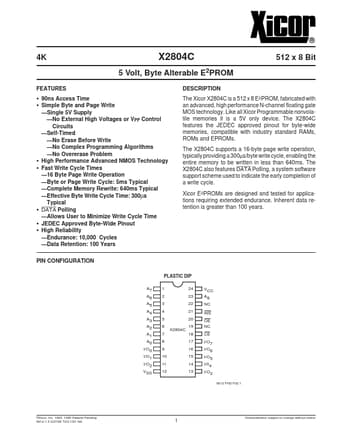

Preview of X2804C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
X2804C
Manufacturer
Xicor
File Size
54.98 KB
Datasheet
X2804C_XicorInc..pdf
Description
5 Volt/ Byte Alterable E2PROM
