X2816C, 5 Volt/ Byte Alterable E2PROM

X2816C 16K X2816C 5 Volt, Byte Alterable E2PROM .
2048 x 8 Bit FEATURES. 90ns Access Time Simple Byte and Page Write.

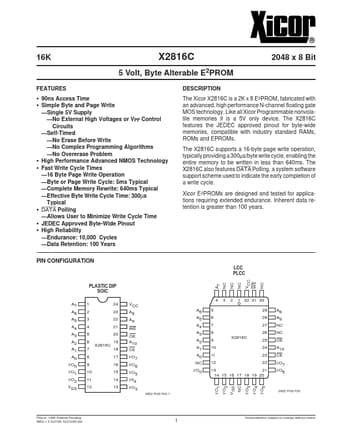

datasheet Preview Page 1 from Datasheet4u.com

X2816C_XicorInc..pdf

X2816C Datasheet Preview — Preview of X2816C PDF

Datasheet Details

Part number:

X2816C

Manufacturer:

Xicor

File Size:

72.34 KB

Description:

5 Volt/ Byte Alterable E2PROM

Features

* 90ns Access Time Simple Byte and Page Write
* Single 5V Supply
* No External High Voltages or VPP Control Circuits
* Self-Timed
* No Erase Before Write
* No Complex Programming Algorithms

Applications

* requiring extended endurance. Inherent data retention is greater than 100 years. PIN CONFIGURATION LCC PLCC VCC WE A7 NC NC NC PLASTIC DIP SOIC A7 A6 A5 A4 A3 A2 A1 A0 I/O0 I/O1 I/O2 VSS 1 2 3 4 5 6 7 8 9 10 11 12 X2816C 24 23 22 21 20 19 18 17 16 15 14 13 VCC A8 A9 WE OE A10 CE I/O7 I/O6 I/O5 I/04
