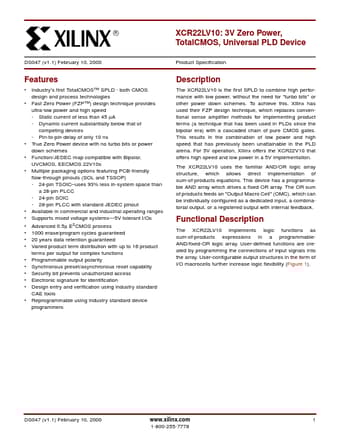

XCR22LV10-10PC28I TotalCMOS/ Universal PLD Device

The XCR22LV10 is the first SPLD to combine high performance with low power, without the need for "turbo bits" or other power down schemes. To achieve this, Xilinx has used their FZP design technique, which replaces conventional sense amplifier methods for implementing product terms (a technique that.

XCR22LV10-10PC28I Features

* Industry's first TotalCMOS™ SPLD - both CMOS design and process technologies Fast Zero Power (FZP™) design technique provides ultra-low power and high speed - Static current of less than 45 µA - Dynamic current substantially below that of competing devices - Pin-to-pin delay of o

XCR22LV10-10PC28I_XilinxInc.pdf
