XCR3032XL-10VQ44C, XCR-3030 - XCR3032XL 32 Macrocell CPLD

Xilinx

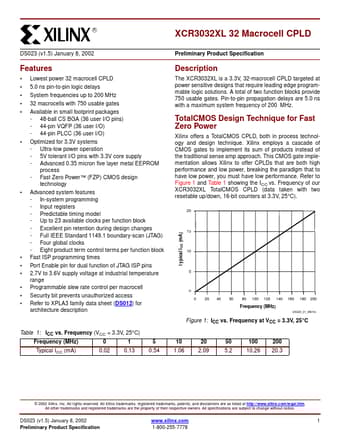

XCR3032XL-10VQ44C Datasheet Preview — This datasheet PDF includes multiple part numbers: XCR3032XL-10VQ44C, XCR-3030. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	XCR3032XL-10VQ44C, XCR-3030
Manufacturer	Xilinx
File Size	84.97 KB
Description	XCR3032XL 32 Macrocell CPLD
Datasheet	XCR-3030-XL.pdf
Note	This datasheet PDF includes multiple part numbers: XCR3032XL-10VQ44C, XCR-3030. Please refer to the document for exact specifications by model.

XCR3032XL-10VQ44C Product details

Description

Description The XCR3032XL is a 3.3V, 32-macrocell CPLD targeted at power sensitive designs that require leading edge programmable logic solutions.A total of two function blocks provide 750 usable gates.Pin-to-pin propagation delays are 5.0 ns with a maximum system frequency of 200 MHz.TotalCMOS Design Technique for Fast Zero Power Xilinx offers a TotalCMOS CPLD, both in process technology and design technique.Xilinx employs a cascade of CMOS gates to implement its sum of products instead o

Features

Lowest power 32 macrocell CPLD 5.0 ns pin-to-pin logic delays System frequencies up to 200 MHz 32 macrocells with 750 usable gates Available in small footprint packages - 48-ball CS BGA (36 user I/O pins) - 44-pin VQFP (36 user I/O) - 44-pin PLCC (36 user I/O) Optimized for 3.3V systems - Ultra-low power operation - 5V tolerant I/O pins with 3.3V core supply - Advanced 0.35 micron five layer metal EEPROM process - Fast Zero Power™ (FZP) CMOS desi.
