XL6019 - 180KHz 60V 5A Switching Current Boost DC/DC Converter

Product Overview

Xlsemi

Datasheet Details

Part number	XL6019
Manufacturer	Xlsemi
File Size	296.44 KB
Description	180KHz 60V 5A Switching Current Boost DC/DC Converter
Datasheet	XL6019 Datasheet

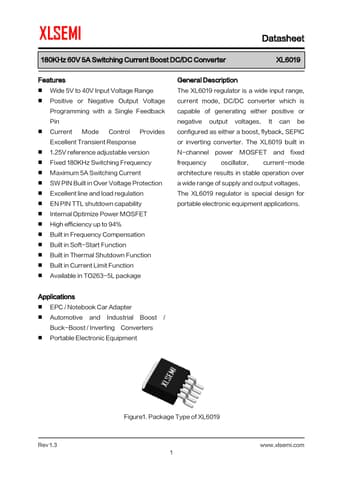

Additional preview pages of the XL6019 datasheet.

Product details

Description

The XL6019 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages.It can be configured as either a boost, flyback, SEPIC or inverting converter.The XL6019 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages.The XL6019 regulator is special design for portable electronic equipment applic

Features

Wide 5V to 40V Input Voltage Range.
Positive or Negative Output Voltage Programming with a Single Feedback Pin.
Current Mode Control Provides Excellent Transient Response.
1.25V reference adjustable version.
Fixed 180KHz Switching Frequency.
Maximum 5A Switching Current.
SW PIN Built in Over Voltage Protection.
Excellent line and load regulation.
EN PIN TTL shutdown capability.
Internal Optimize Power MOSFET.
High efficiency up to 94%.
