XS4502 - 60V Single Channel Constant Current LED Driver

📥 Download Datasheet

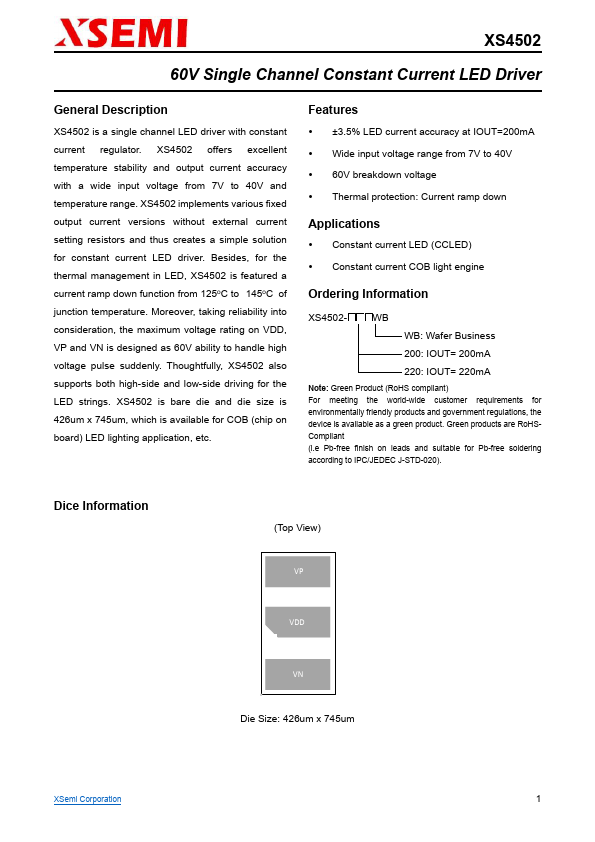

XS4502 Datasheet Preview — Preview of XS4502 PDF

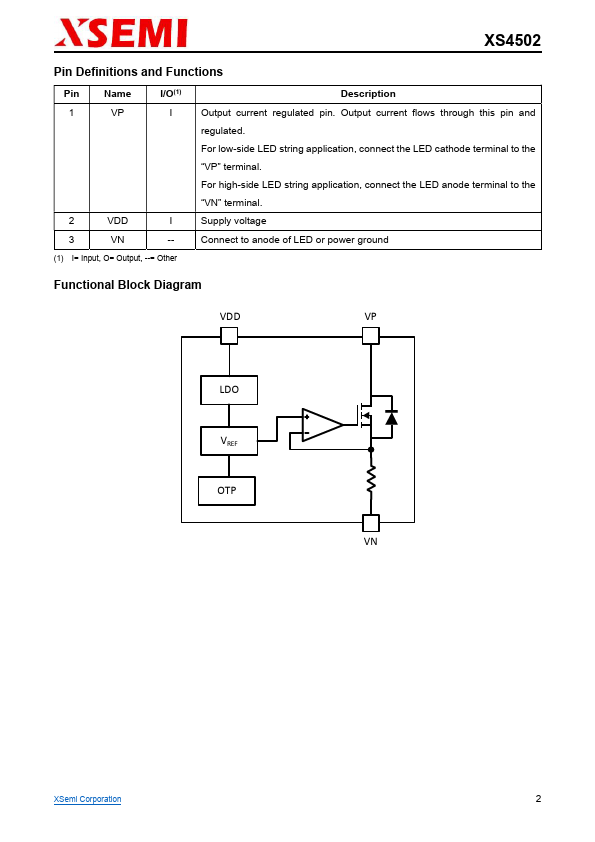

datasheet Preview Page 2

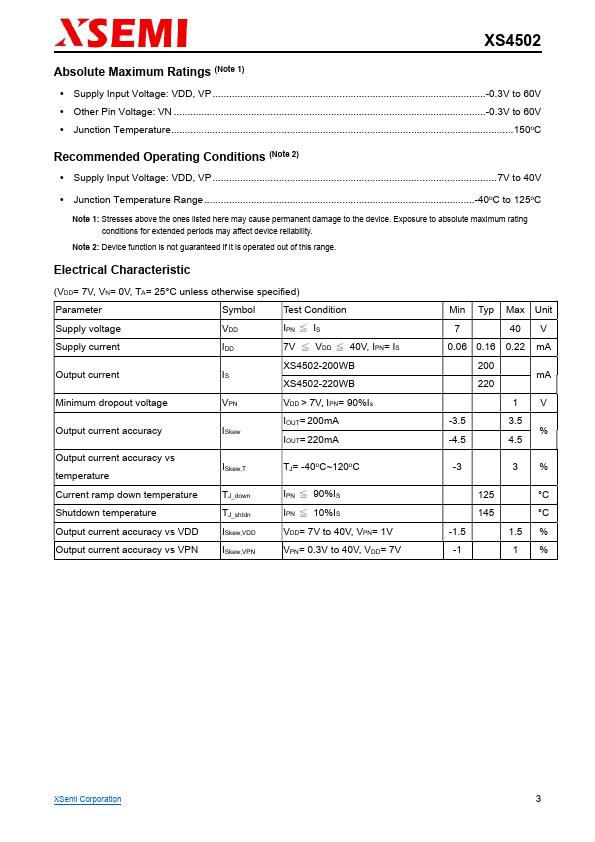

datasheet Preview Page 3

Datasheet Details

Part number	XS4502
Manufacturer	Xsemi
File Size	1.12 MB
Description	60V Single Channel Constant Current LED Driver
Datasheet	XS4502-Xsemi.pdf

XS4502 Product details

Description

XS4502 is a single channel LED driver with constant current regulator.

Features

±3.5% LED current accuracy at IOUT=200mA.
Wide input voltage range from 7V to 40V.
60V breakdown voltage.
Thermal protection: Current ramp down.
