XS4501 - 60V 20mA Single Channel Constant Current LED Driver

📥 Download Datasheet

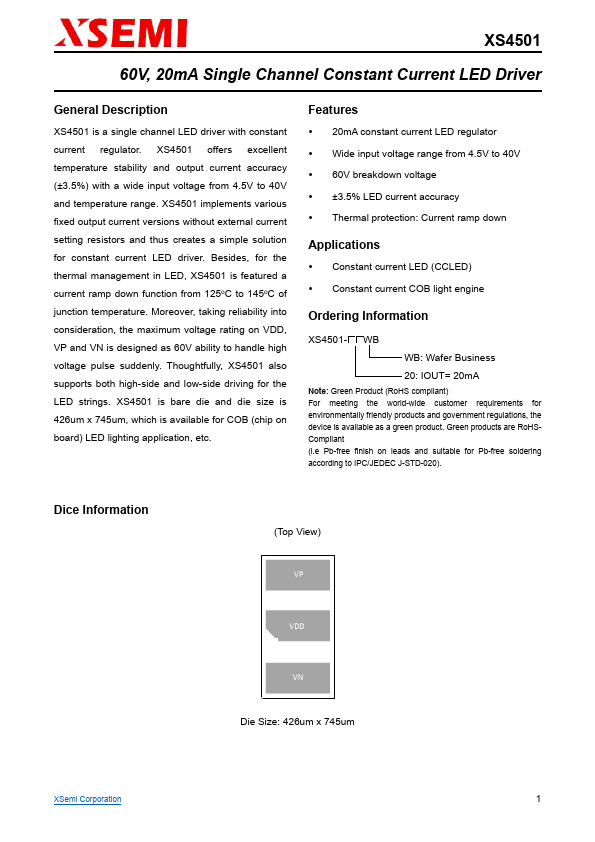

XS4501 Datasheet Preview — Preview of XS4501 PDF

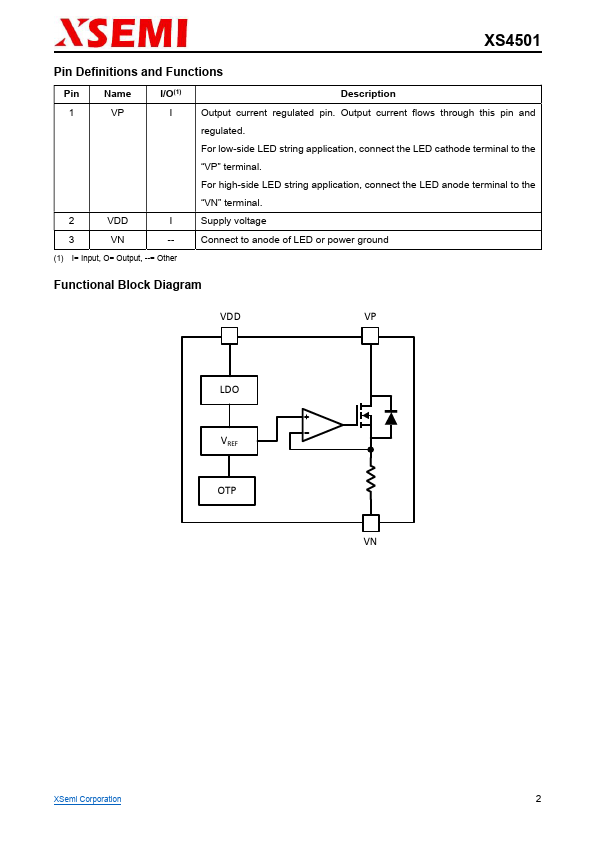

datasheet Preview Page 2

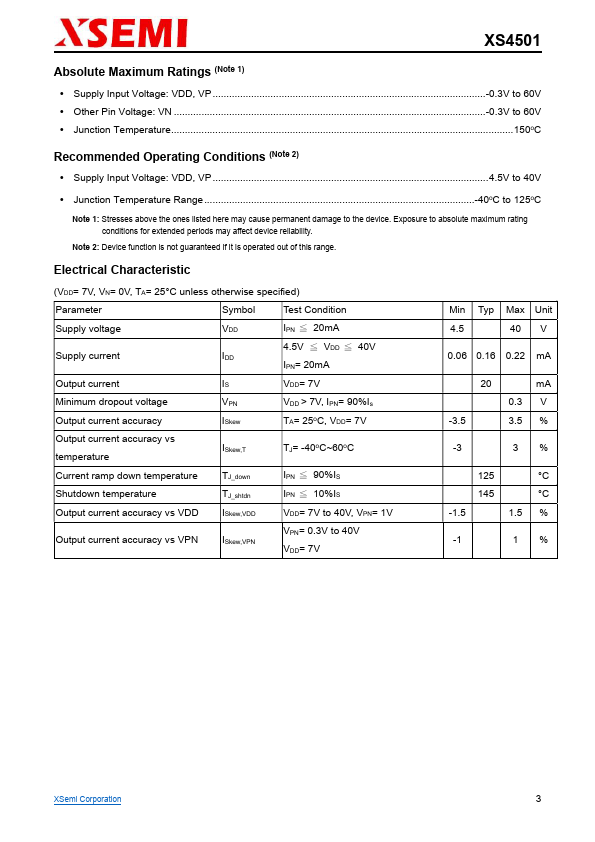

datasheet Preview Page 3

Datasheet Details

Part number	XS4501
Manufacturer	Xsemi
File Size	1.08 MB
Description	60V 20mA Single Channel Constant Current LED Driver
Datasheet	XS4501-Xsemi.pdf

XS4501 Product details

Description

XS4501 is a single channel LED driver with constant current regulator.

Features

20mA constant current LED regulator.
Wide input voltage range from 4.5V to 40V.
60V breakdown voltage.
±3.5% LED current accuracy.
Thermal protection: Current ramp down.
