XB8783AS

One Cell Lithium-ion/Polymer Battery Protection IC

XB8783AS Features

* Protection of Charger Reverse Connection

* Protection of Battery Cell Reverse Connection

* Integrate Advanced Power MOSFET with Equivalent of 13mΩ RSS(ON)

* SOP8 Package

* Only One External Capacitor Required

* Over-temperature Protection

* Overcharge Current Protection

XB8783AS General Description

The XB8783AS Series product is a high integration solution for lithiumion/polymer battery protection. XB8783AS contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB8783AS is put into an SOP8 package and only one external component makes it an ideal solution .

XB8783AS Datasheet (1.22 MB)

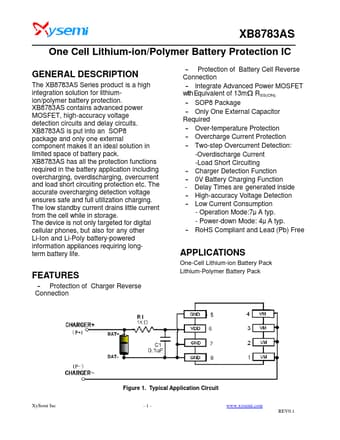

XB8783AS Datasheet Preview — Preview of XB8783AS PDF

Datasheet Details

Part number:

XB8783AS

Manufacturer:

XySemi

File Size:

1.22 MB

Description:

One cell lithium-ion/polymer battery protection ic.
XB8783AS ______________________________________ ________________________________________________________________________________ One Cell Lithium-ion/.
