XR3081

Step-Up Converter

XR3081 General Description

The XR3081 is a current-mode and fixed frequency boost converter with an integrated N-FET to drive up to 5~6 white LEDs in series. The series connection allows the LED current to be identical for uniform brightness. Its low on resistance of N- FET and feedback voltage reduce power loss and achieve h.

XR3081 Datasheet (456.36 KB)

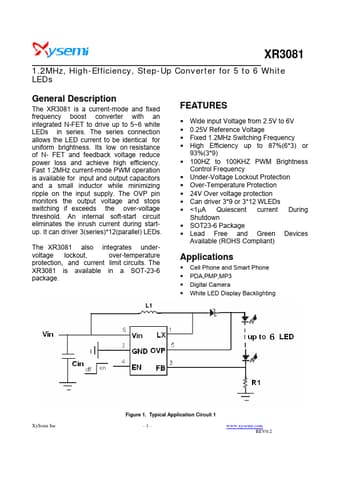

XR3081 Datasheet Preview — Preview of XR3081 PDF

Datasheet Details

Part number:

XR3081

Manufacturer:

XySemi

File Size:

456.36 KB

Description:

Step-up converter.
XR3081 _______________________________________________________________________________________________________ 1.2MHz, High-Efficiency, Step-Up Conver.
