1.5KE6.8A-AT TRANSIENT VOLTAGE SUPPRESSORS

1.5KE6.8A-AT Description

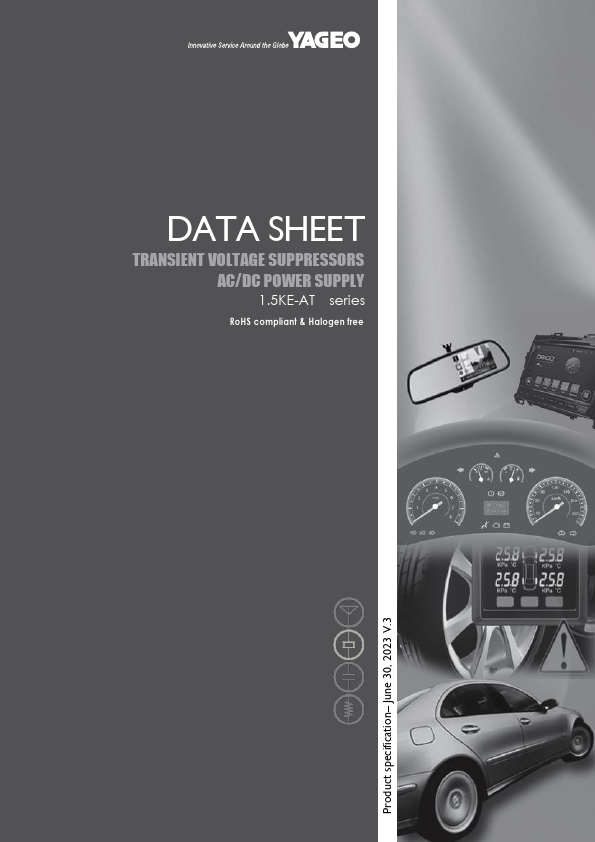

DATA SHEET TRANSIENT VOLTAGE SUPPRESSORS AC/DC POWER SUPPLY 1.5KE-AT series RoHS compliant & Halogen free Product specification * June 30, 202.

1.5KE6.8A-AT Features

* Glass passivated junction
* Low zener impedance
* Excellent clamping capability
* 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
* Fast response time
* Typical IR less than 1μA above 12V.
* High Temperature soldering guarant

1.5KE6.8A-AT Applications

* I/O interface
* AC/DC power supply
* Low frequency signal transmission line (RS232, RS485, etc. ) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (No

📥 Download Datasheet

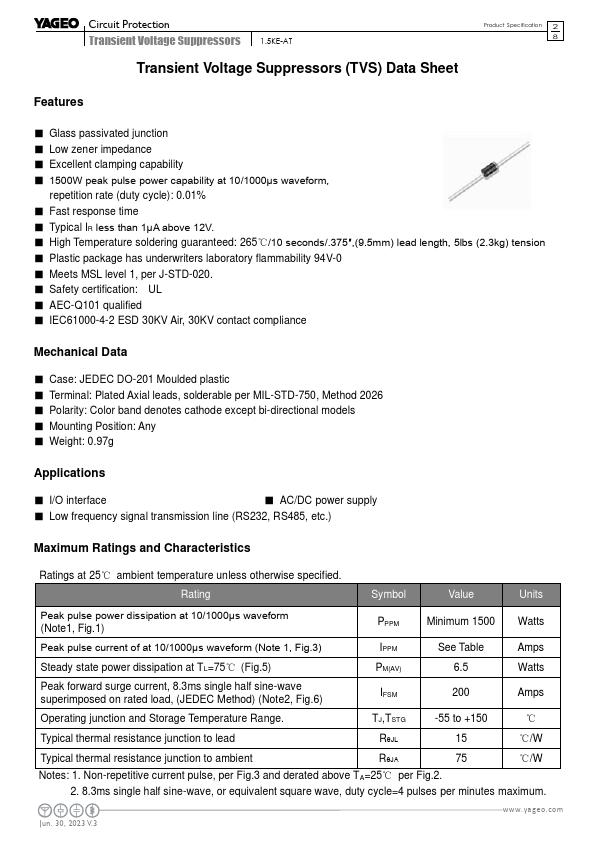

Preview of 1.5KE6.8A-AT PDF

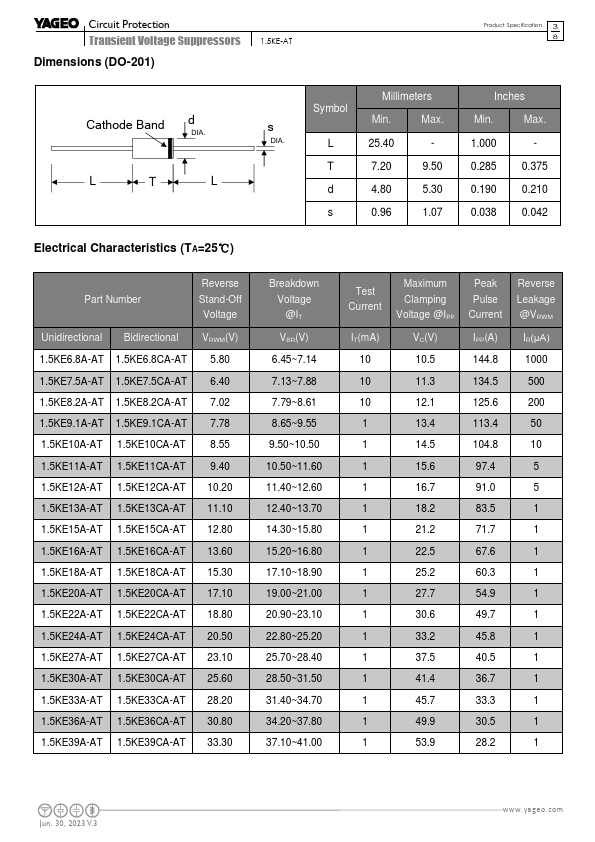

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1.5KE6.8A-AT
Manufacturer
YAGEO
File Size
391.21 KB
Datasheet
1.5KE6.8A-AT-YAGEO.pdf
Description
TRANSIENT VOLTAGE SUPPRESSORS
