AC2512, AC2010 Datasheet - YAGEO

AC2512 THICK FILM CHIP RESISTORS

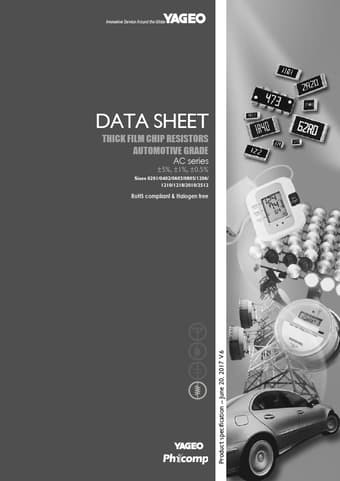

DATA SHEET THICK FILM CHIP RESISTORS AUTOMOTIVE GRADE AC series ±5%, ±1%, ±0.5% Sizes 0201/0402/0603/0805/1206/ 1210/1218/2010/2512 RoHS compliant & Halogen free Product specification June 20, 2017 V.6 Chip Resistor Surface Mount AC SERIES 0201 to 2512 Product specification 2 12 SCOPE This specification describes AC0201 to AC2512 chip resistors with leadfree terminations made by thick film process. APPLICATIONS All general purpose applications Car electronics, industria.

AC2512 Features

* AEC-Q200 qualified

* Moisture sensitivity level: MSL 1

* AC series soldering is compliant with J-STD-020D

* Halogen free epoxy

* RoHS compliant - Products with lead-free terminations meet RoHS requirements - Pb-glass contained in electrodes, resistor element and glass are exemp

AC2010-YAGEO.pdf

This datasheet PDF includes multiple part numbers: AC2512, AC2010. Please refer to the document for exact specifications by model.
AC2512 Datasheet Preview Page 2 AC2512 Datasheet Preview Page 3

Datasheet Details

Part number:

AC2512, AC2010

Manufacturer:

YAGEO

File Size:

739.83 KB

Description:

Thick film chip resistors.

Note:

This datasheet PDF includes multiple part numbers: AC2512, AC2010.
Please refer to the document for exact specifications by model.
