PE1206

CURRENT SENSOR

PE1206 Features

* Halogen-free Epoxy

* RoHS compliant

* Reduce environmentally hazardous wastes

* High component and equipment reliability

* Non-forbidden materials used in products/production

* Low resistances applied to current sensing ORDERING INFORMATION - GLOBAL PART NUMBER Global part

PE1206 General Description

OPERATING TEMPERATURE RANGE Range:

*55°C to +170°C POWER RATING Standard rated power at 70°C: PE0603 = 1/10W PE0805 = 1/8W PE1206 = 1/4W PE2010 = 1/2W PE2512 = 1W PE4527 = 2W For detail power value, please refer to Table 2. RATED VOLTAGE The DC or AC (rms) continuous working voltage correspo.

PE1206 Datasheet (531.38 KB)

Preview of PE1206 PDF

Datasheet Details

Part number:

PE1206

Manufacturer:

YAGEO

File Size:

531.38 KB

Description:

Current sensor.

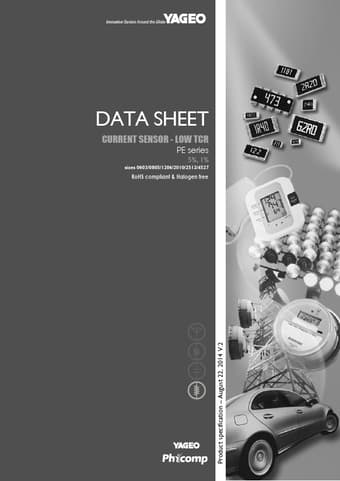

DATA SHEET CURRENT SENSOR - LOW TCR PE series 5%, 1% sizes 0603/0805/1206/2010/2512/4527 RoHS compliant & Halogen free Product specification

.
