PE12016G, PE12024G - (PE12016G / PE12024G) Incremental Encoder

PE12016G Description

www.DataSheet4U.net PE12016G / PE12024G Incremental Encoder December 15, 2005 Version 1.7 .
The PE12016G/12024G INCREMENTAL ENCODER INTERFACE can independently determine the direction or displacement of a mechanical device or axis based on t.

PE12016G Features

* Functional and pincompatible with obsolete TI CF32007NW/NT / THCT12016 / THCT 12024 / LS2000 5 V and 3.3 V Operation 0.6u CMOS Process Direction discriminator Pulse width measurement Frequency measurement Cascadable (PE12016G only)

PE12016G Applications

* The PE12016G/12024G enables mechanical devices to be interlaced with micro-processors. It may be used in many diverse applications, including robotics, printers/plotters, tracker balls (or mouse), lathes and machine tools, automobiles, conveyor belts and transport mechanisms. Architecture: The fou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PE12016G, PE12024G. Please refer to the document for exact specifications by model.

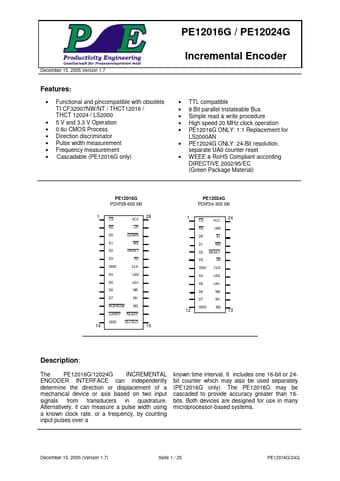

datasheet Preview Page 2 datasheet Preview Page 3
