PE2512 CURRENT SENSOR

OPERATING TEMPERATURE RANGE Range: *55°C to +170°C POWER RATING Standard rated power at 70°C: PE0603 = 1/10W PE0805 = 1/8W PE1206 = 1/4W PE2010 = 1/2W PE2512 = 1W PE4527 = 2W For detail power value, please refer to Table 2. RATED VOLTAGE The DC or AC (rms) continuous working voltage correspo.

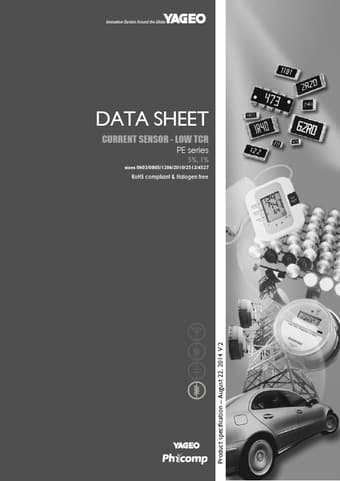

DATA SHEET CURRENT SENSOR - LOW TCR PE series 5%, 1% sizes 0603/0805/1206/2010/2512/4527 RoHS compliant & Halogen free Product specification August 22, 2014 V.2 - Product specification 2 Chip Resistor Surface Mount PE SERIES 0603/0805/1206/2010/2512/4527 12 SCOPE This specification describes PE series current sensor - low TCR with lead-free terminations made by metal foil with ceramic substrate. APPLICATIONS Consumer goods Computer Telecom / Datacom Indust.

PE2512 Features

* Halogen-free Epoxy

* RoHS compliant

* Reduce environmentally hazardous wastes

* High component and equipment reliability

* Non-forbidden materials used in products/production

* Low resistances applied to current sensing ORDERING INFORMATION - GLOBAL PART NUMBER Global part

PE2010-YAGEO.pdf

PE2512 Datasheet Preview — This datasheet PDF includes multiple part numbers: PE2512, PE2010. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PE2512, PE2010

Manufacturer:

YAGEO

File Size:

531.38 KB

Description:

Current sensor.

Note:

This datasheet PDF includes multiple part numbers: PE2512, PE2010.
Please refer to the document for exact specifications by model.
