PE25F120 Datasheet - SanRex

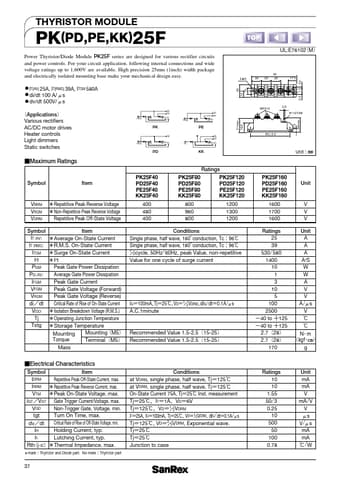

PE25F120 THYRISTOR

THYRISTOR MODULE PK(PD,PE,KK)25F Power Thyristor/Diode Module PK25F series are designed for various rectifier circuits and power controls. For your circuit application. following internal connections and wide voltage ratings up to 1,600V are available. High precision 25mm (1inch) width package and electrically isolated mounting base make your mechanical design easy. 2- 6 ˔ IT(AV) 25A, IT(RMS) 39A, ITSM 580A ˔ di/dt 100 A/Жs ˔ dv/dt 500V/Жs 31max 19.5 ʢApplicationsʣ Various rectifiers AC/.

PE25F120 Datasheet (139.59 KB)
