XP12NB3R0TL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP12NB3R0TL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Ultra Low On-resistan.
XP12NB3R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

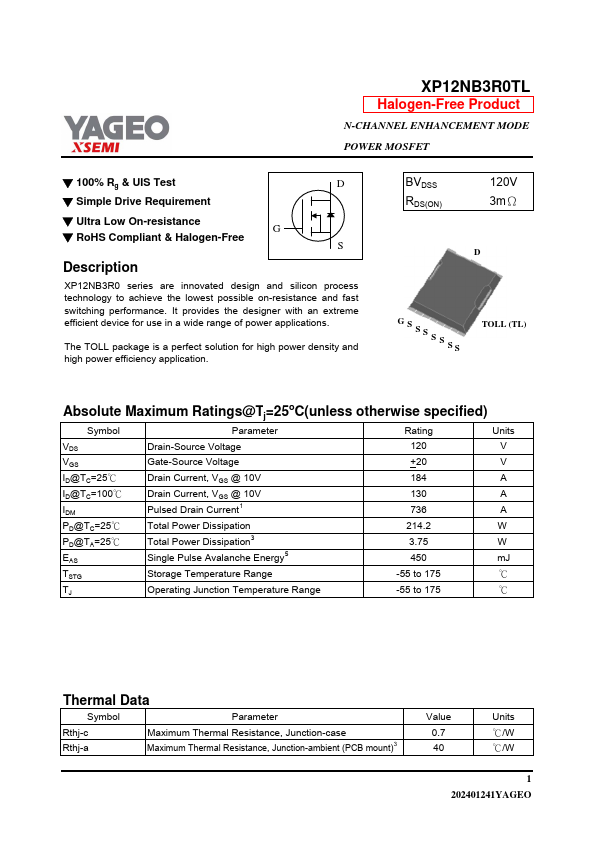

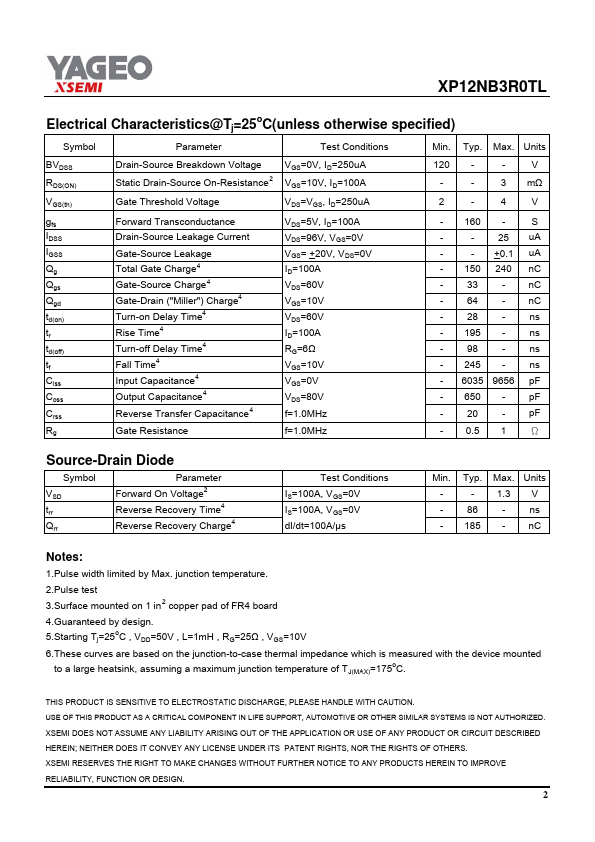

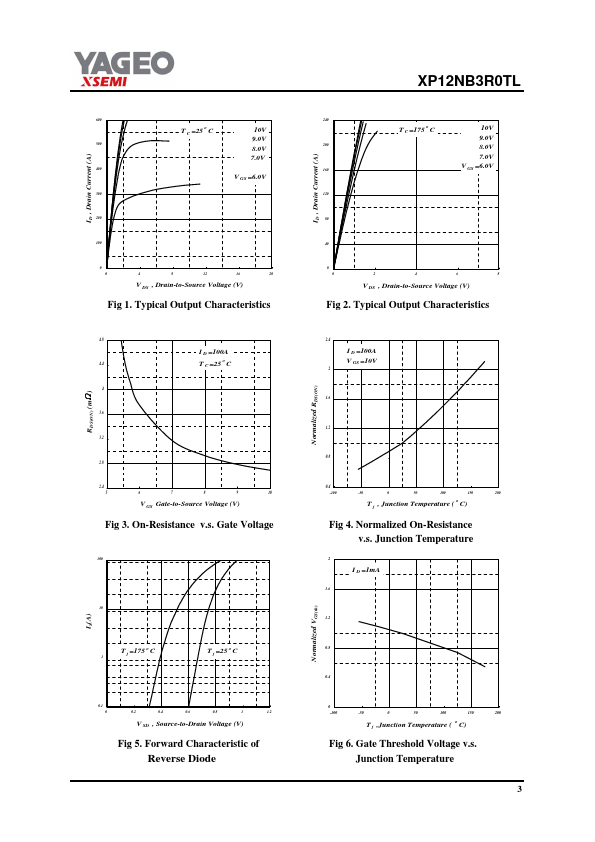

XP12NB3R0TL Datasheet Preview — Preview of XP12NB3R0TL PDF

Datasheet Specifications

Part number: XP12NB3R0TL
Manufacturer: YAGEO
File Size: 297.85 KB
Datasheet: XP12NB3R0TL-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TOLL package is a perfect solution for high power density and high power efficiency application. BVDSS RDS(ON) 120V 3mΩ D GS SS S S SS TOLL (TL) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ PD@T
