XP20N15AGH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

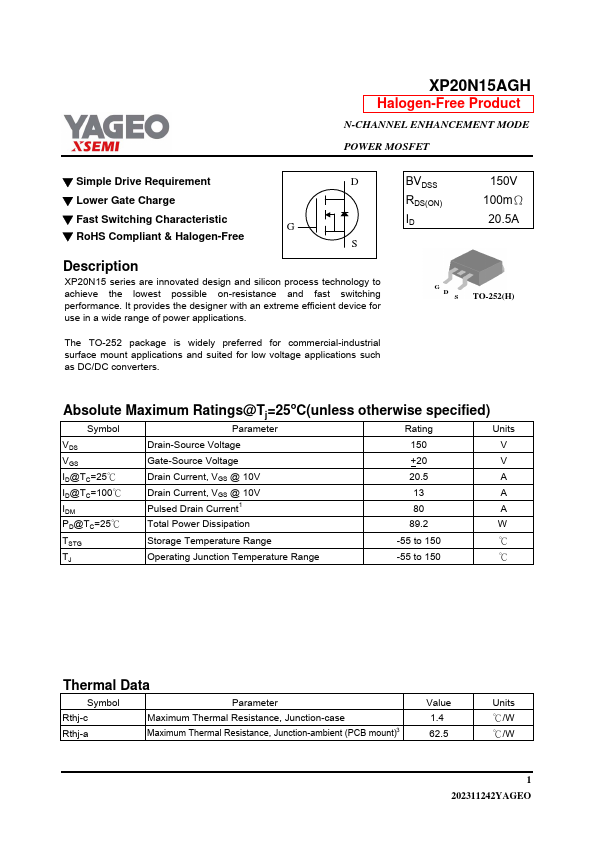

📥 Download Datasheet Datasheet Preview Page 1

Description

XP20N15AGH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Lower Gate Charge ▼ Fast Switching Characte.
XP20N15 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP20N15AGH PDF

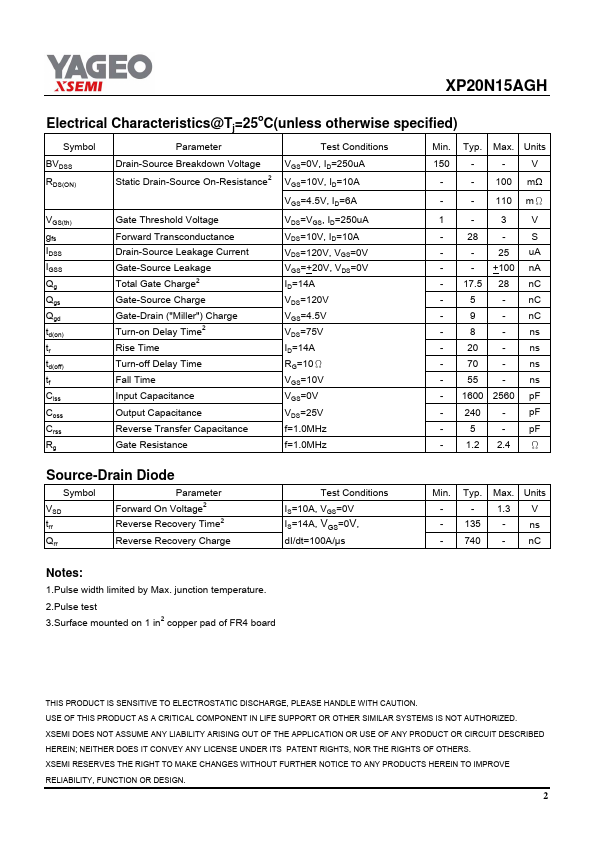

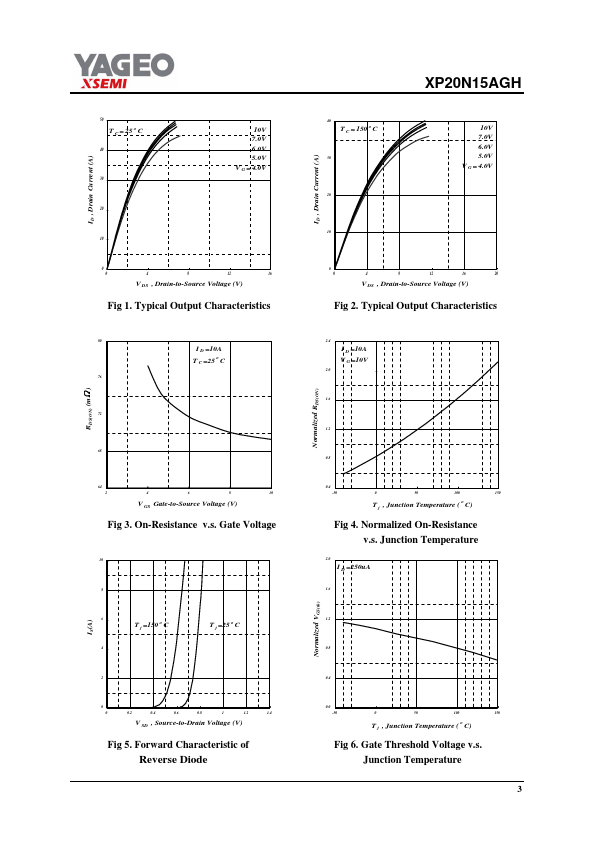

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP20N15AGH
Manufacturer
YAGEO
File Size
209.22 KB
Datasheet
XP20N15AGH-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID 150V 100mΩ 20.5A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rat
