XP20N15GI N-CHANNEL ENHANCEMENT MODE POWER MOSFET

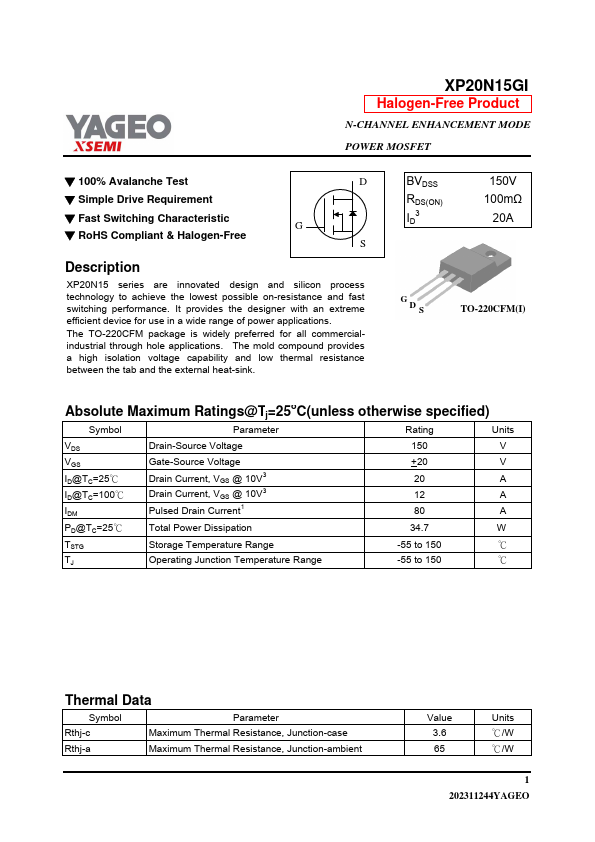

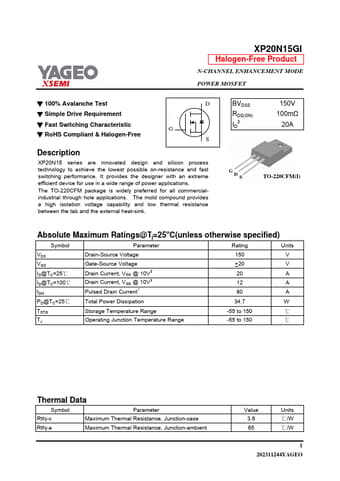

📥 Download Datasheet Datasheet Preview Page 1

Description

XP20N15GI Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Avalanche Test D ▼ Simple Drive Requirement ▼ Fast Switching Charact.
XP20N15 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP20N15GI PDF

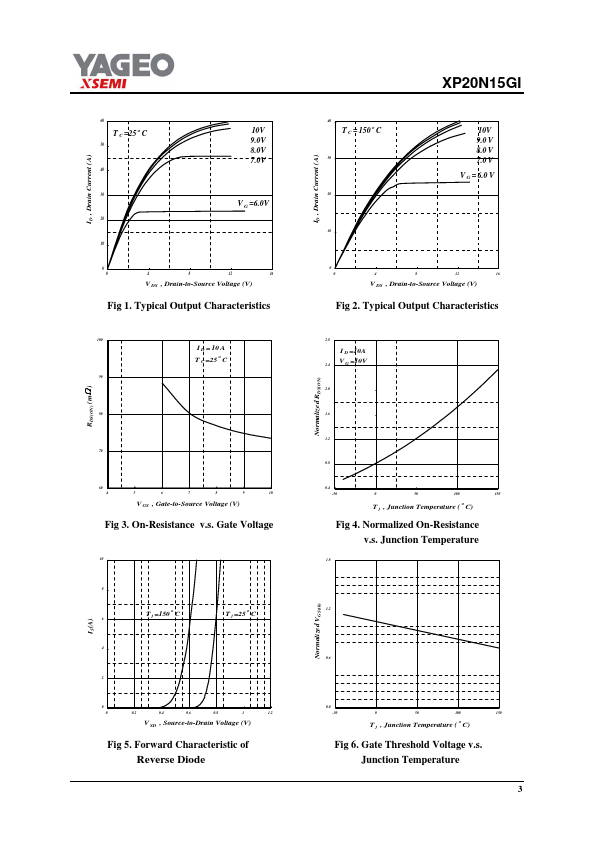

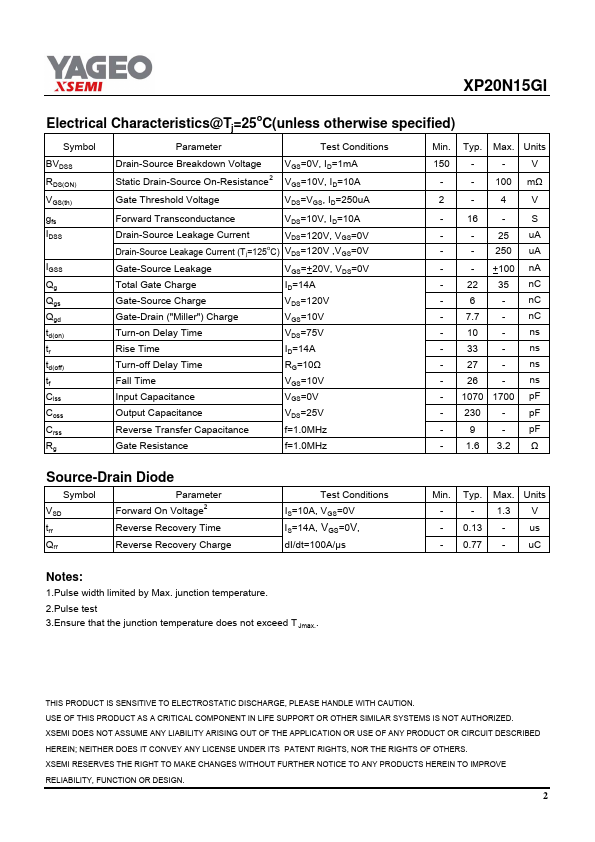

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP20N15GI
Manufacturer
YAGEO
File Size
249.29 KB
Datasheet
XP20N15GI-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 150V 100mΩ 20A GD S TO-220CFM(I) Absolute Ma
