XP20T03GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP20T03GH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP20T03 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

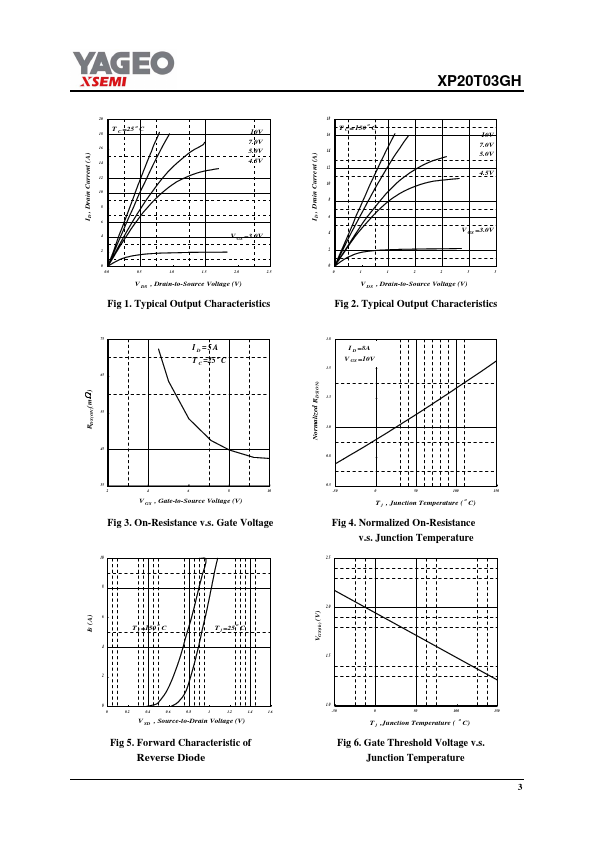

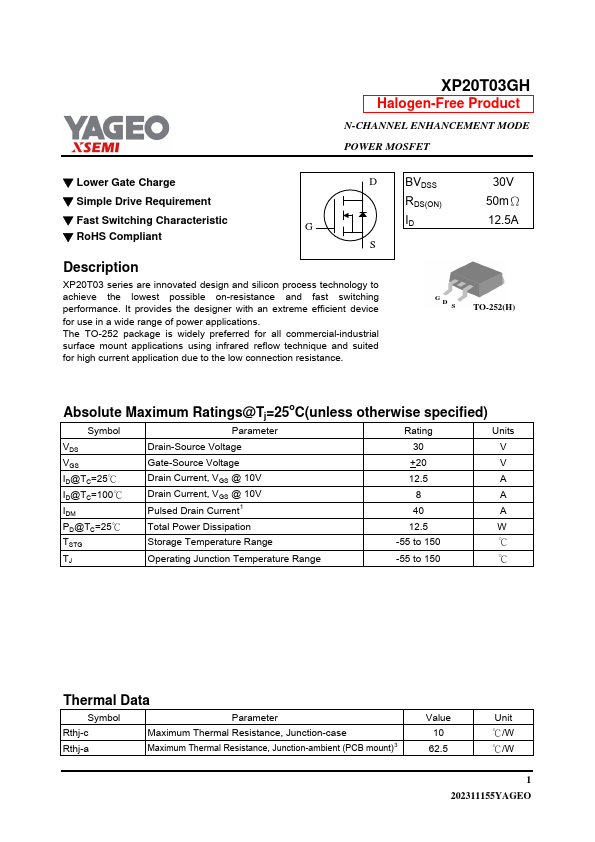

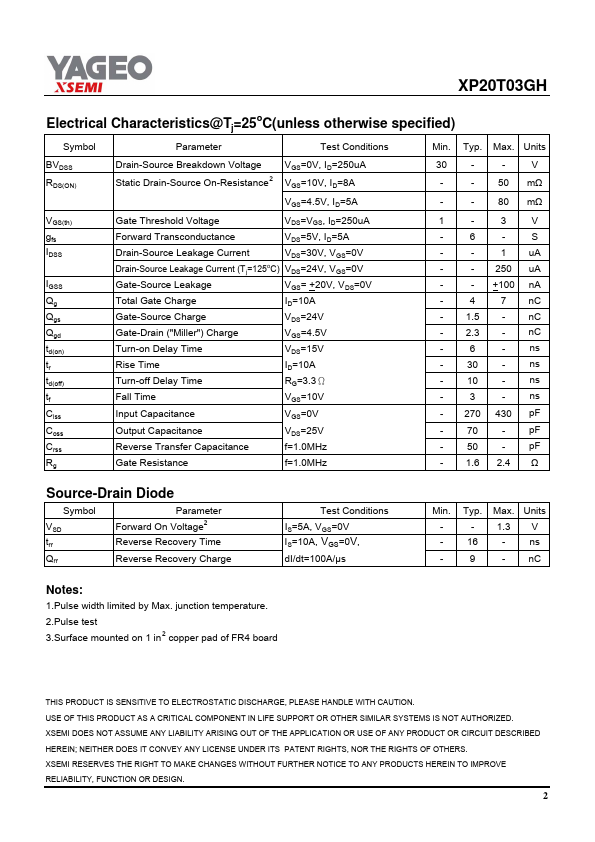

XP20T03GH Datasheet Preview — Preview of XP20T03GH PDF

Datasheet Specifications

Part number: XP20T03GH
Manufacturer: YAGEO
File Size: 209.83 KB
Datasheet: XP20T03GH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID 30V 50mΩ 12.5A GD S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless o
