Datasheet Specifications
- Part number
- XP3N9R5MT
- Manufacturer
- YAGEO
- File Size
- 322.94 KB
- Datasheet
- XP3N9R5MT-YAGEO.pdf
- Description
- N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Description

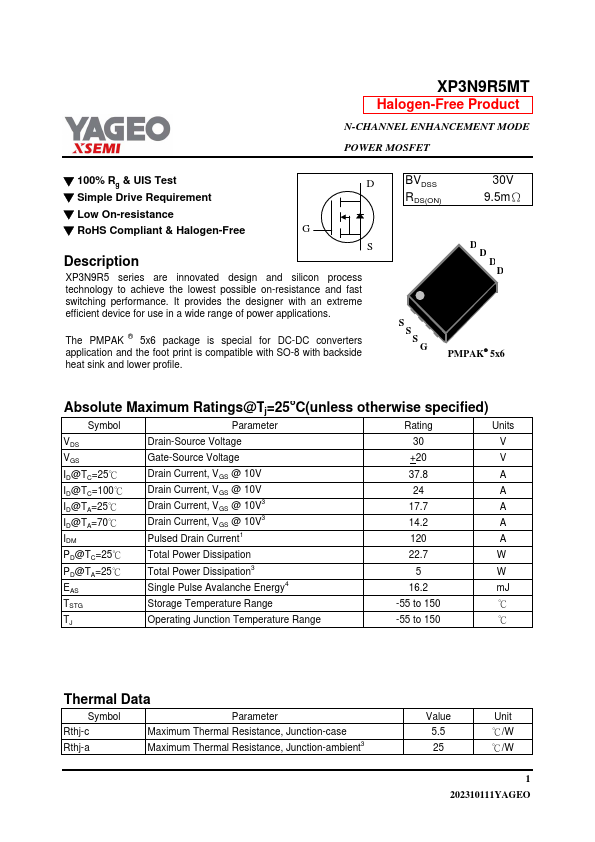

XP3N9R5MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Ro.
Applications
* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 30V 9.5mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter RatingXP3N9R5MT Distributors
