XP3NA7R2AYT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

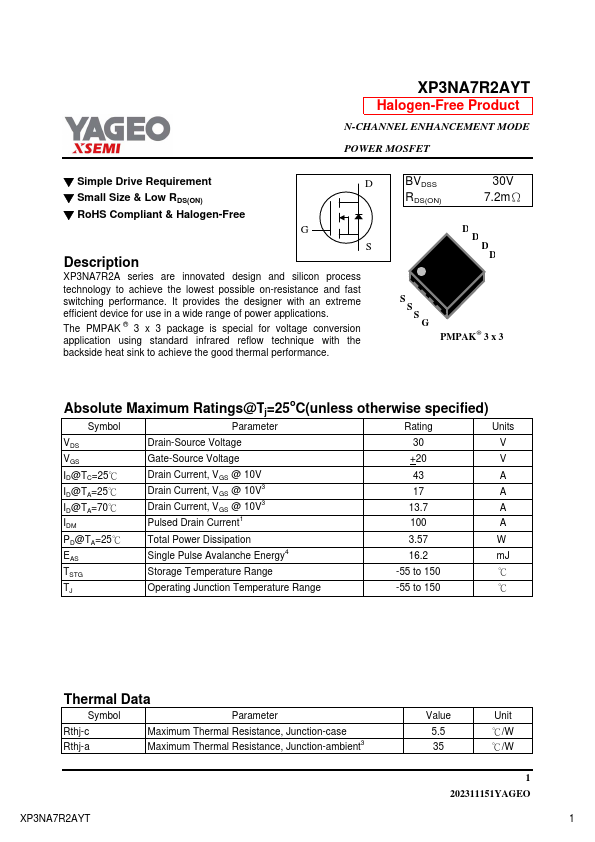

📥 Download Datasheet Datasheet Preview Page 1

Description

XP3NA7R2AYT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Size & Low RDS(ON) ▼ RoHS Compliant .
XP3NA7R2A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP3NA7R2AYT PDF

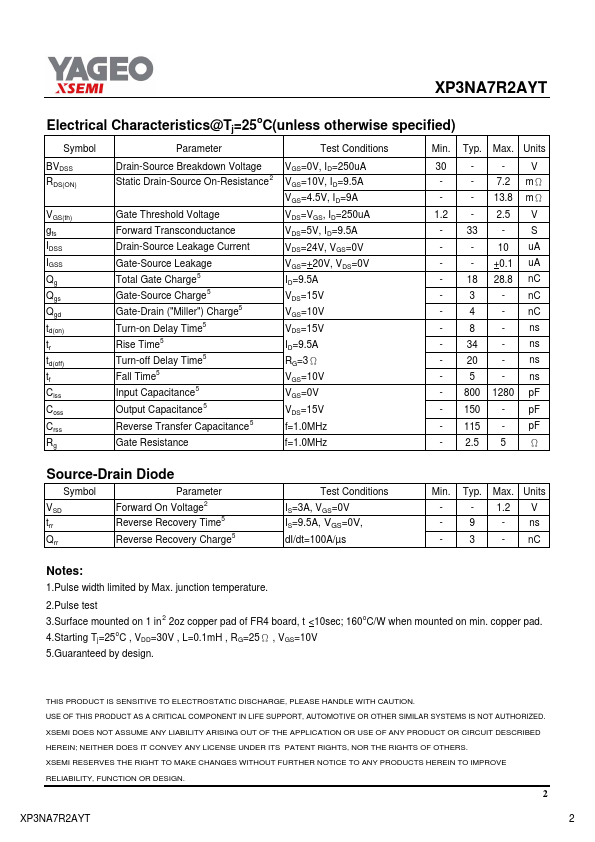

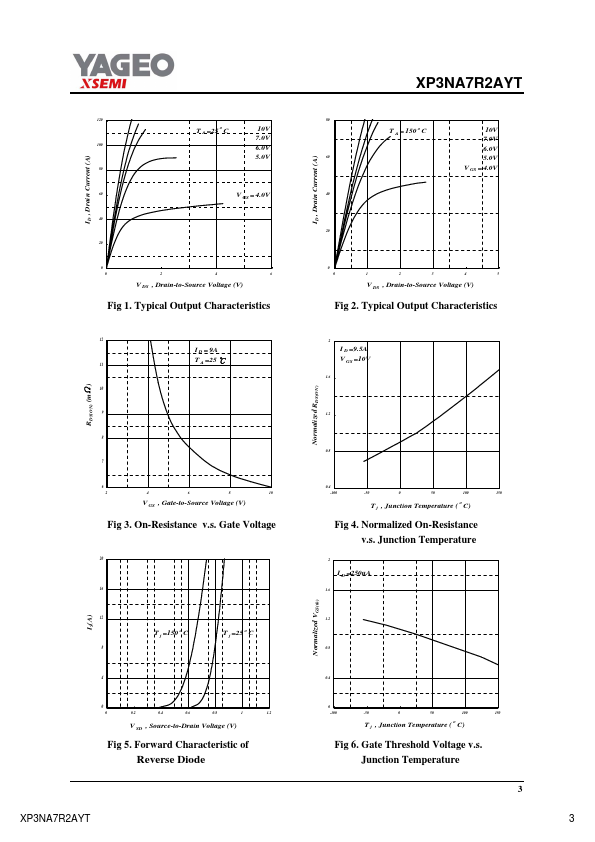

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP3NA7R2AYT
Manufacturer
YAGEO
File Size
247.76 KB
Datasheet
XP3NA7R2AYT-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3 x 3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) 30V 7.2mΩ D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specifie
