XP3NA7R2MT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3NA7R2MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼ R.
XP3NA7R2 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

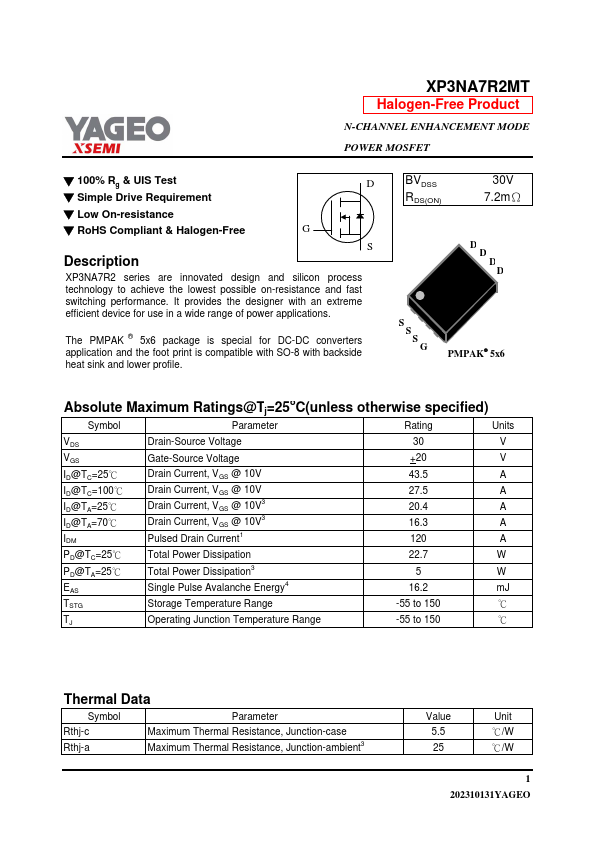

XP3NA7R2MT Datasheet Preview — Preview of XP3NA7R2MT PDF

Datasheet Specifications

Part number: XP3NA7R2MT
Manufacturer: YAGEO
File Size: 323.24 KB
Datasheet: XP3NA7R2MT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 30V 7.2mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
