Datasheet Specifications
- Part number
- XP4N1R8CMT-A
- Manufacturer
- YAGEO
- File Size
- 323.84 KB
- Datasheet
- XP4N1R8CMT-A-YAGEO.pdf
- Description
- N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Description

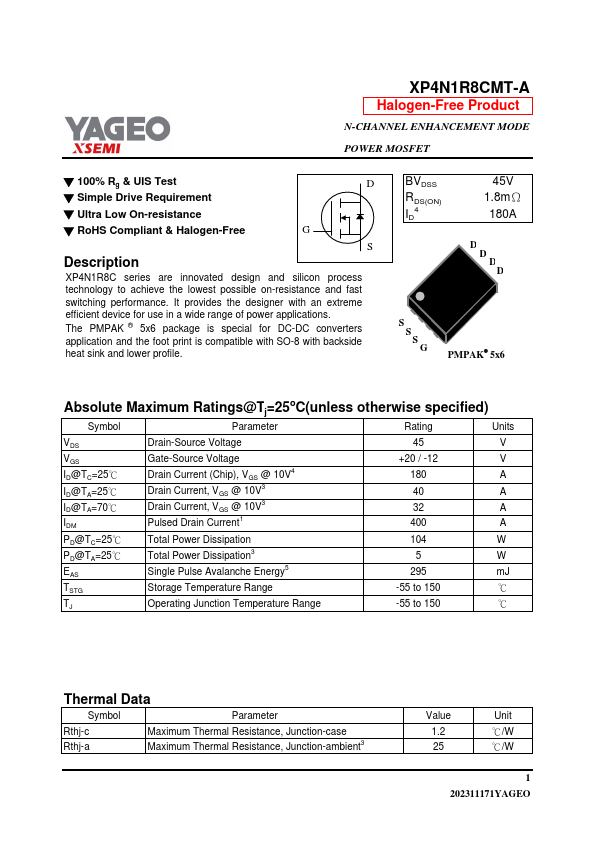

XP4N1R8CMT-A Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Ultra Low On-resista.
Applications
* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID4 45V 1.8mΩ 180A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol ParameterXP4N1R8CMT-A Distributors
