XP50AN500IN N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP50AN500IN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP50AN500 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

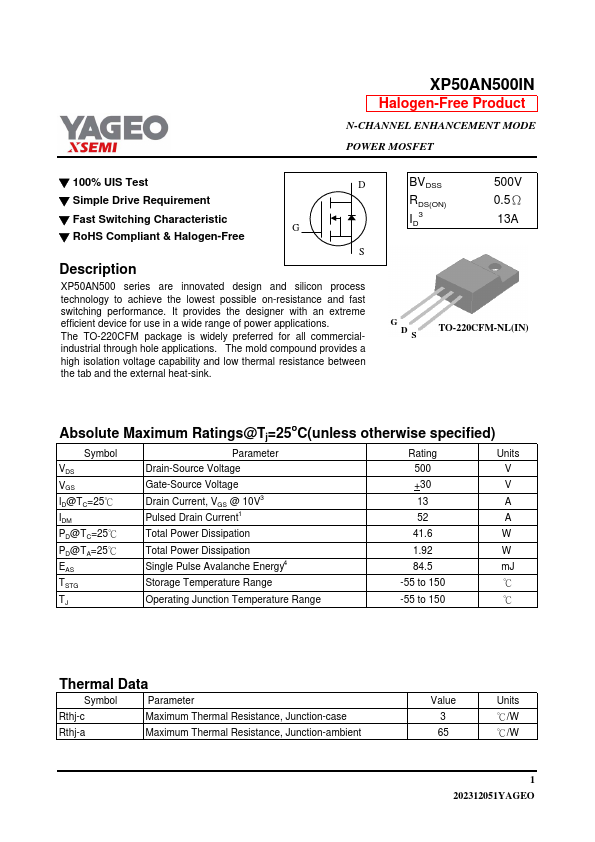

XP50AN500IN Datasheet Preview — Preview of XP50AN500IN PDF

Datasheet Specifications

Part number: XP50AN500IN
Manufacturer: YAGEO
File Size: 58.32 KB
Datasheet: XP50AN500IN-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 500V 0.5Ω 13A G DS TO-220CFM-NL(IN) Absolute
