XP50AN1K0H N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP50AN1K0H Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP50AN1K0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

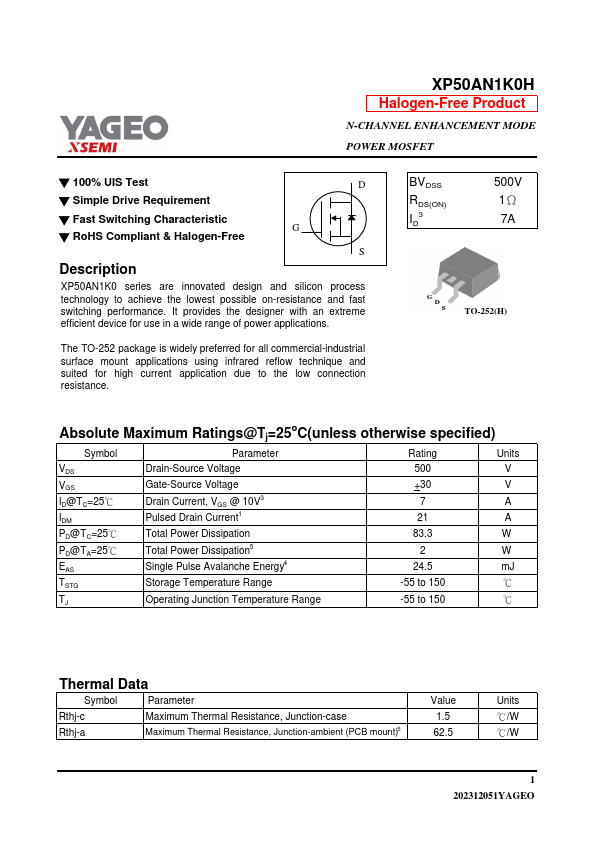

XP50AN1K0H Datasheet Preview — Preview of XP50AN1K0H PDF

Datasheet Specifications

Part number: XP50AN1K0H
Manufacturer: YAGEO
File Size: 173.33 KB
Datasheet: XP50AN1K0H-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID3 500V 1Ω 7A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless ot
