XP50AN270I N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP50AN270I Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP50AN270 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

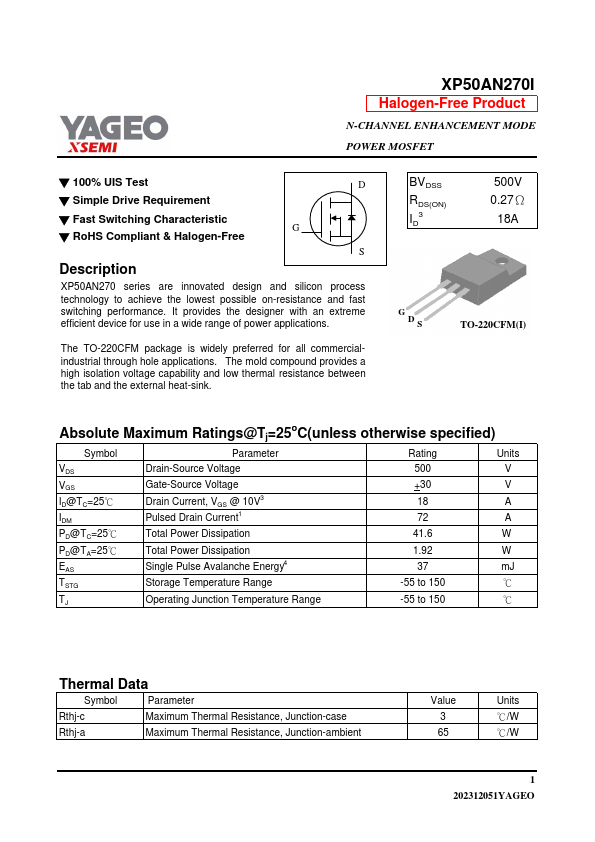

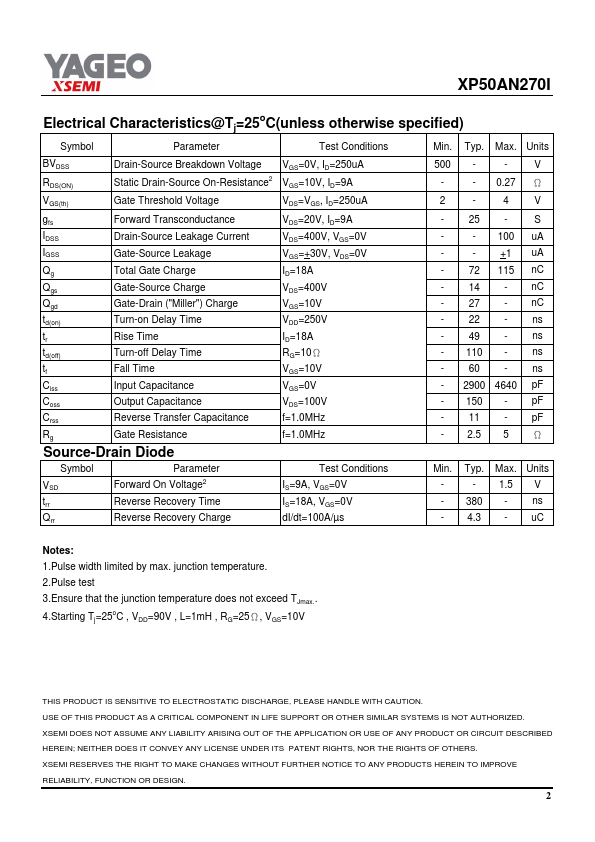

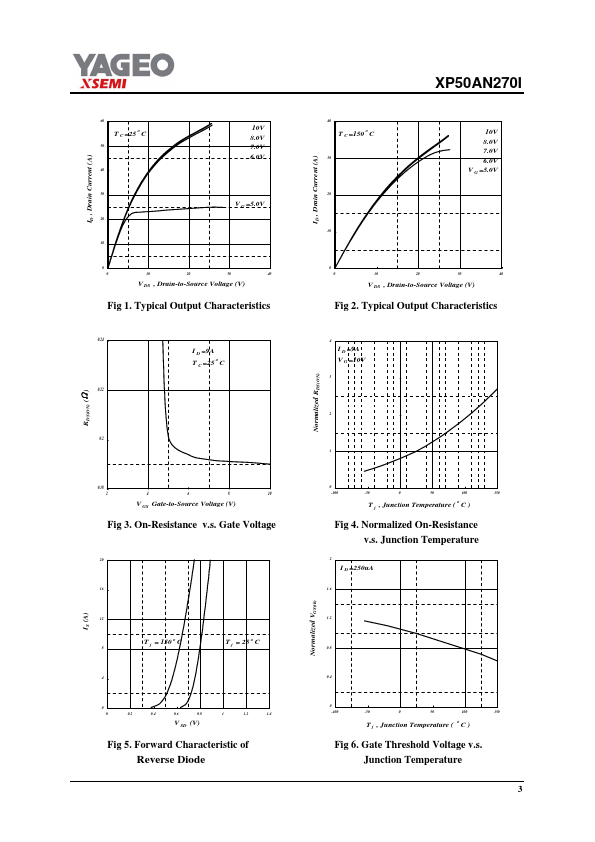

XP50AN270I Datasheet Preview — Preview of XP50AN270I PDF

Datasheet Specifications

Part number: XP50AN270I
Manufacturer: YAGEO
File Size: 213.09 KB
Datasheet: XP50AN270I-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 500V 0.27Ω 18A G DS TO-220CFM(I) Absolute M
