XP50AN1K5P N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP50AN1K5P Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP50AN1K5 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

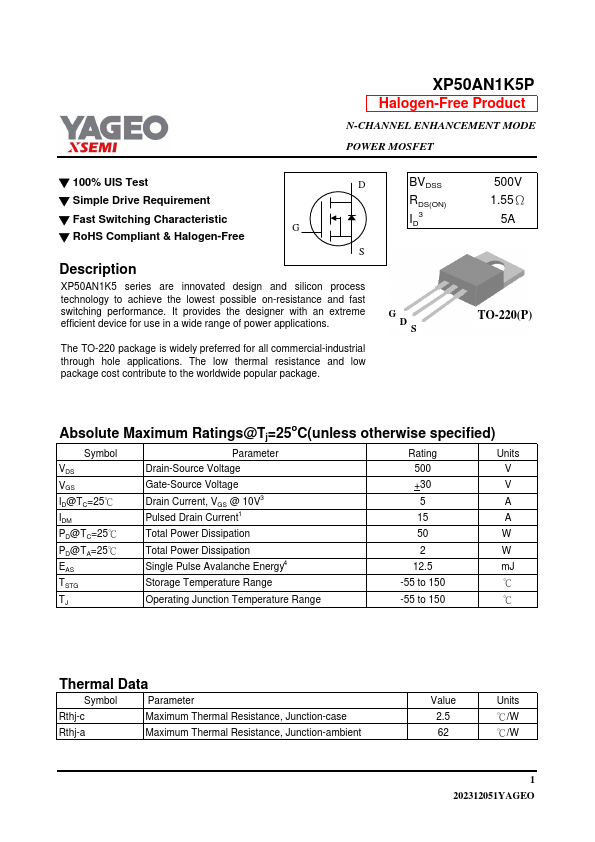

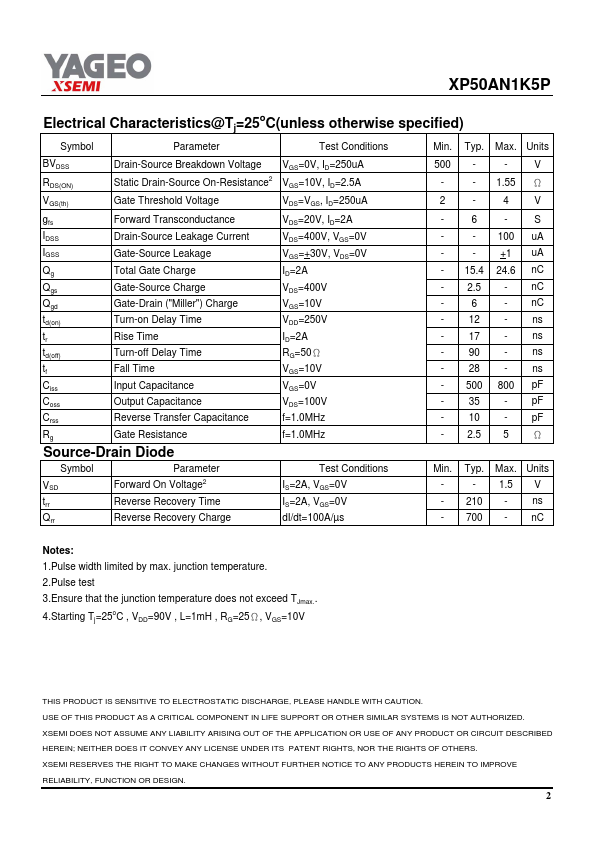

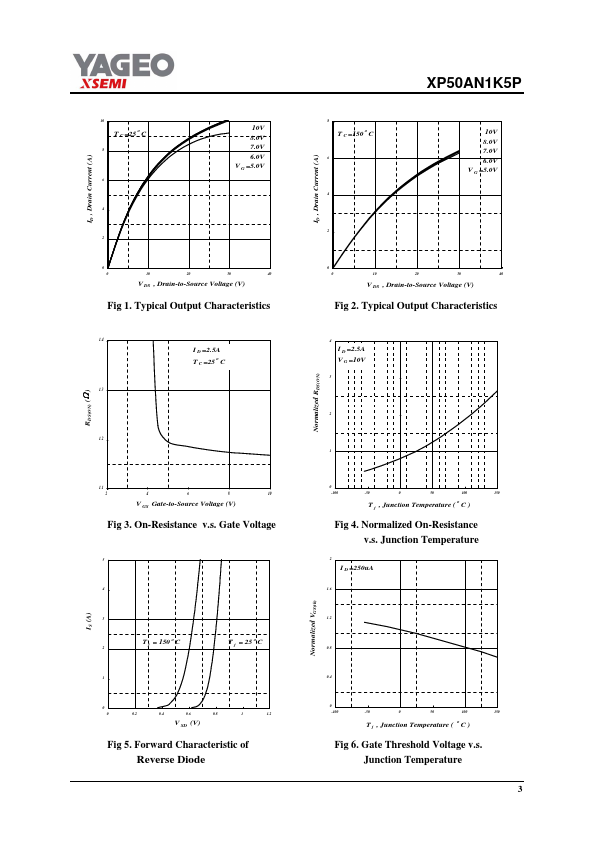

XP50AN1K5P Datasheet Preview — Preview of XP50AN1K5P PDF

Datasheet Specifications

Part number: XP50AN1K5P
Manufacturer: YAGEO
File Size: 149.36 KB
Datasheet: XP50AN1K5P-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID3 G D S 500V 1.55Ω 5A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specifie
