XP60SA380ADI N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SA380ADI Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ Ro.
XP60SA380AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

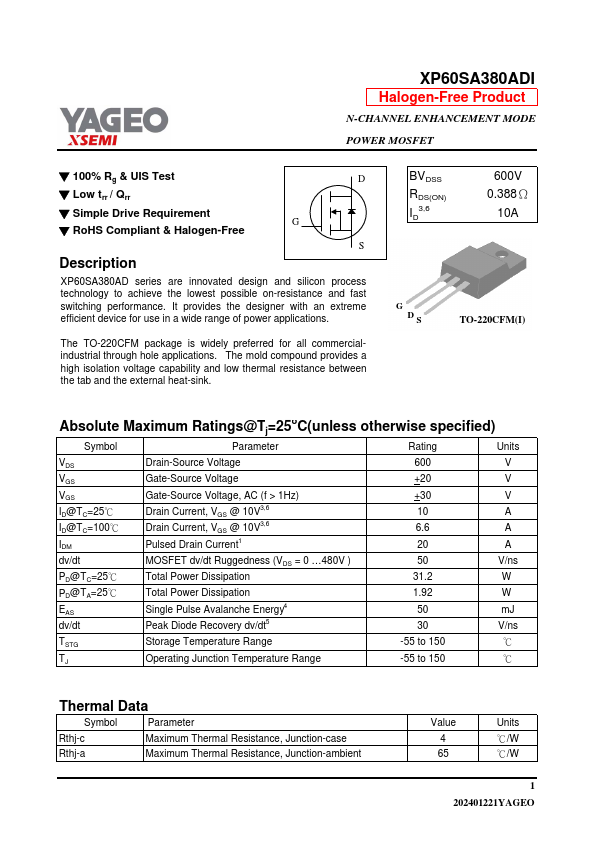

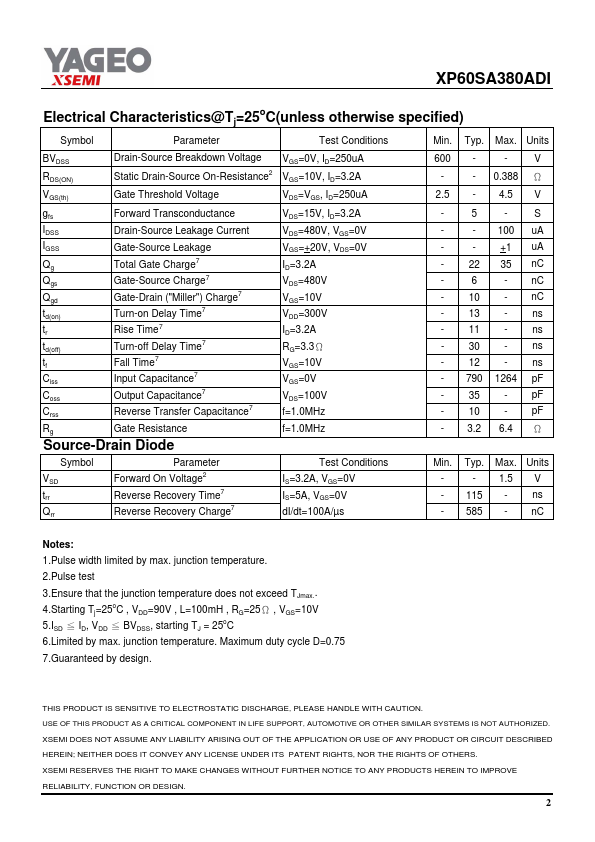

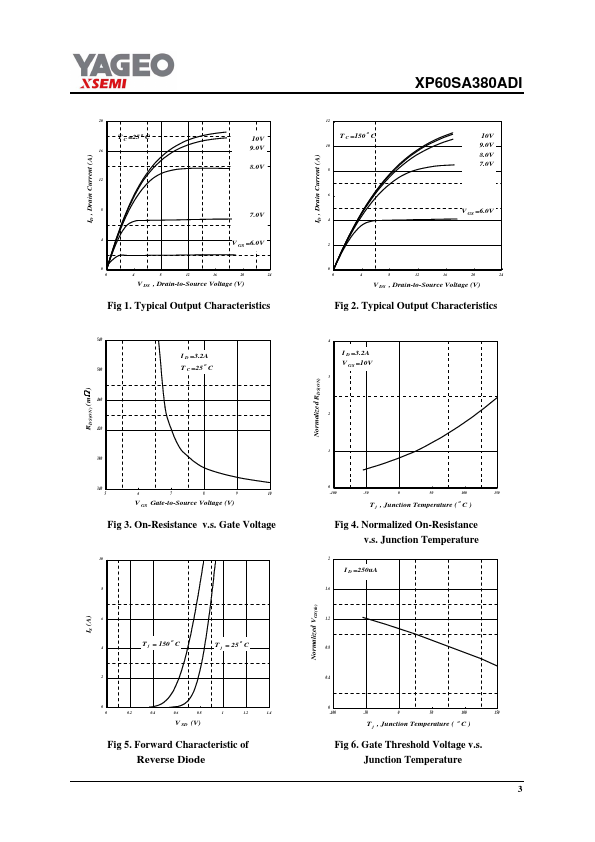

XP60SA380ADI Datasheet Preview — Preview of XP60SA380ADI PDF

Datasheet Specifications

Part number: XP60SA380ADI
Manufacturer: YAGEO
File Size: 216.86 KB
Datasheet: XP60SA380ADI-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,6 600V 0.388Ω 10A G DS TO-220CFM(I) Absolut
