XP60SA380DH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SA380DH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP60SA380D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

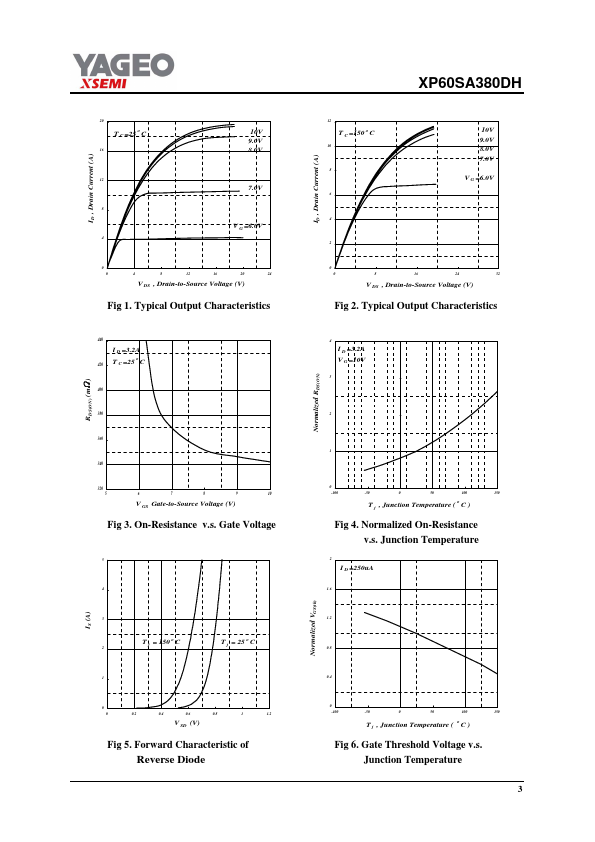

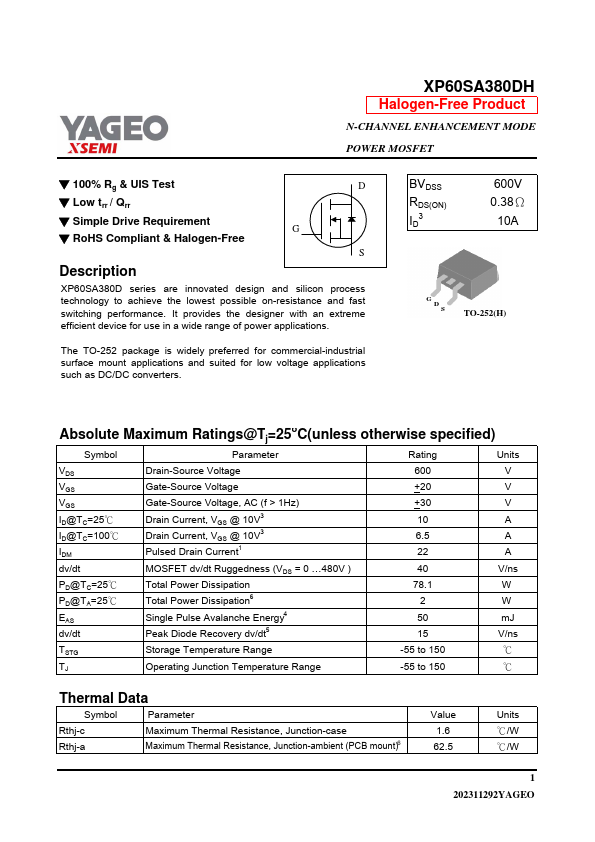

XP60SA380DH Datasheet Preview — Preview of XP60SA380DH PDF

Datasheet Specifications

Part number: XP60SA380DH
Manufacturer: YAGEO
File Size: 215.33 KB
Datasheet: XP60SA380DH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 600V 0.38Ω 10A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
