XP60SC060ADP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC060ADP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ Ro.
XP60SC060AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

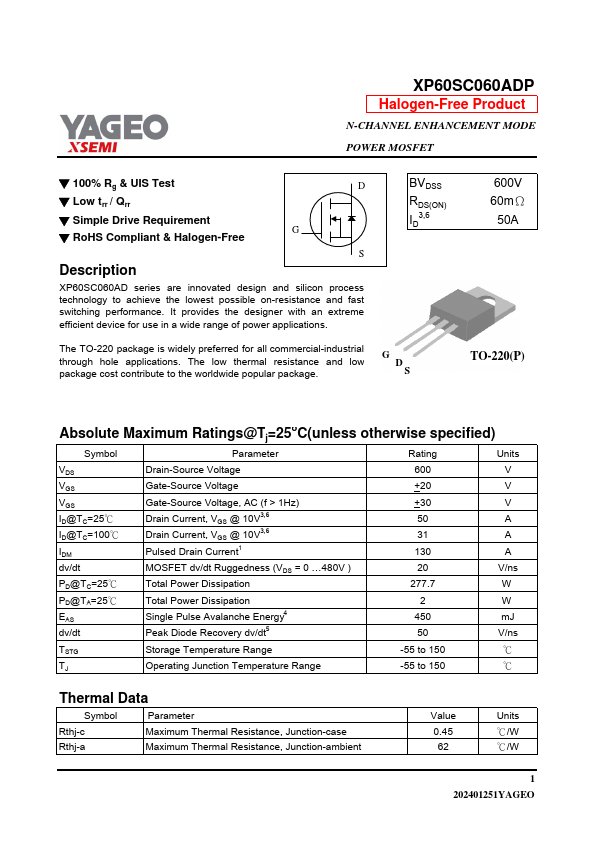

XP60SC060ADP Datasheet Preview — Preview of XP60SC060ADP PDF

Datasheet Specifications

Part number: XP60SC060ADP
Manufacturer: YAGEO
File Size: 190.33 KB
Datasheet: XP60SC060ADP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID3,6 The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. G D S 600V 60mΩ 50A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise speci
