XP60SC060ADTL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC060ADTL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement ▼ Ro.
XP60SC060AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

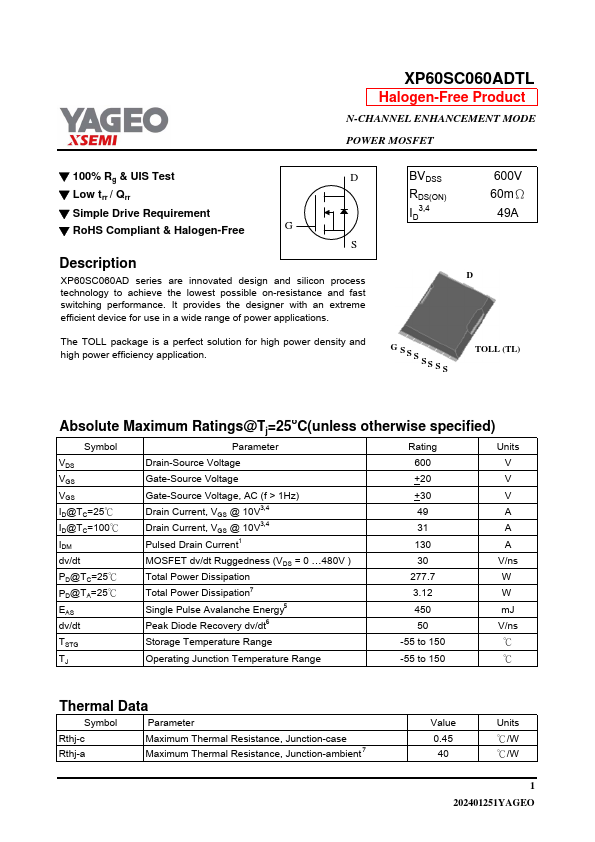

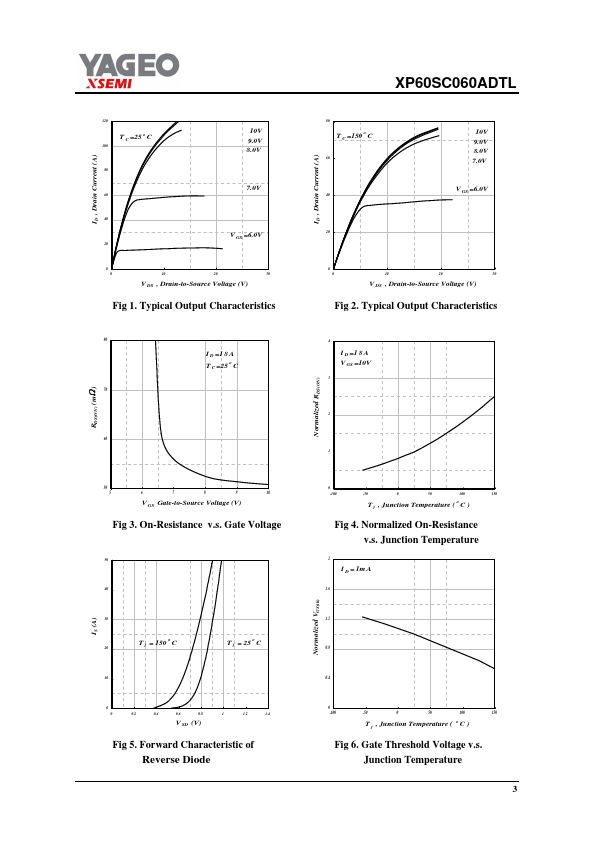

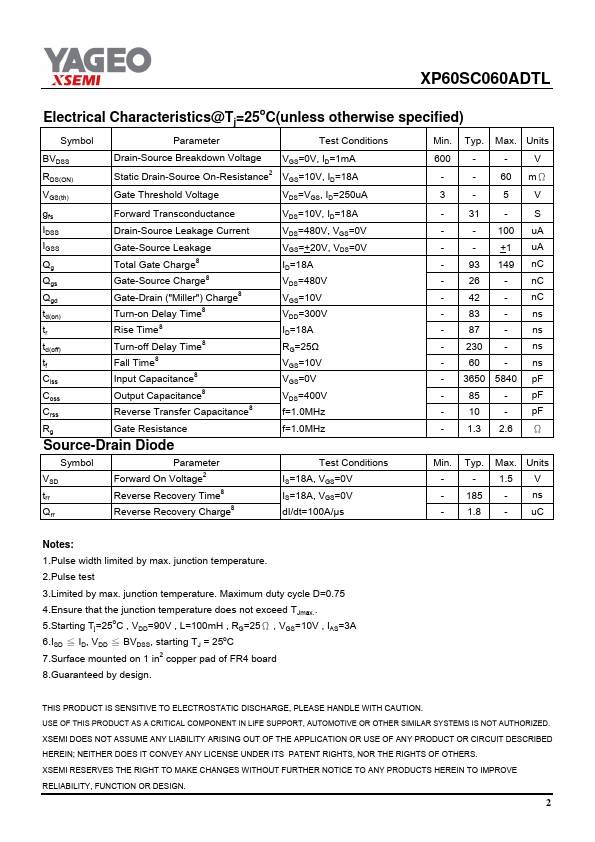

XP60SC060ADTL Datasheet Preview — Preview of XP60SC060ADTL PDF

Datasheet Specifications

Part number: XP60SC060ADTL
Manufacturer: YAGEO
File Size: 295.89 KB
Datasheet: XP60SC060ADTL-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TOLL package is a perfect solution for high power density and high power efficiency application. BVDSS RDS(ON) ID3,4 600V 60mΩ 49A D G SSS SS SS TOLL (TL) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 600 V VG
