XP65SA130DI, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA130DI Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SA130D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

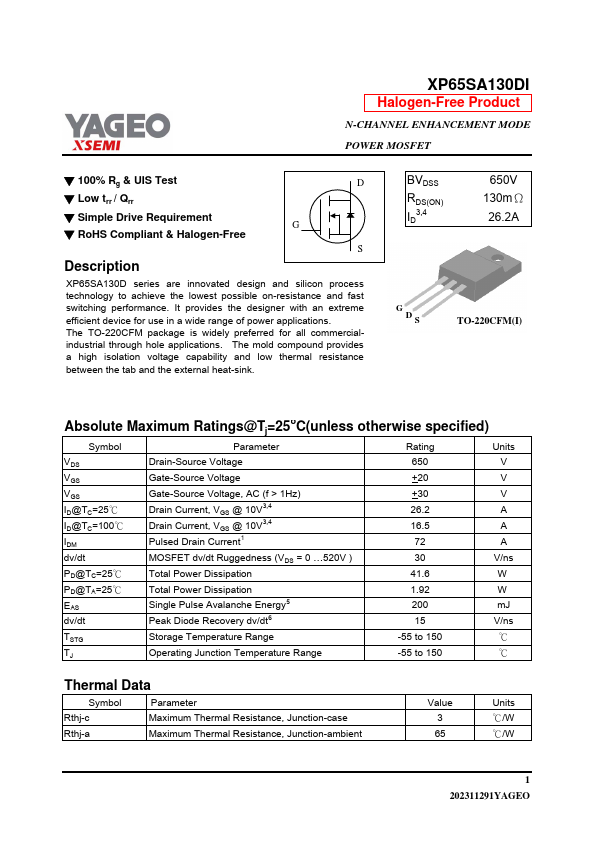

datasheet Preview Page 1 from Datasheet4u.com

XP65SA130DI-YAGEO.pdf

XP65SA130DI Datasheet Preview — Preview of XP65SA130DI PDF

Datasheet Details

Part number:

XP65SA130DI

Manufacturer:

YAGEO

File Size:

254.69 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,4 650V 130mΩ 26.2A G DS TO-220CFM(I) Absolut
