XP6501
Panasonic Semiconductor
33.25 KB

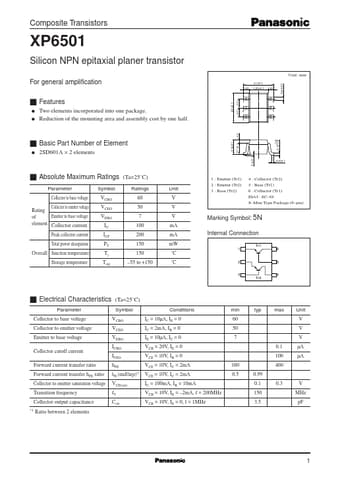

Silicon npn epitaxial planer transistor.
Composite Transistors
XP6501
Silicon NPN epitaxial planer transistor
Unit: mm
0.425 1.25±0.1 0.425
0.2±0.05
For general amplification
2.1±0.1
0.65.
* 0.65 1 2 3 6 5 4 0.9±0.1 q 2SD601A × 2 elements 0.7±0.1 0 to 0.1 0.2±0.1 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Rating Emitter to base voltage of element Collector current Peak collector current Total power dissipation Overall Junction t
