XP65AN1K2IT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65AN1K2IT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP65AN1K2 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

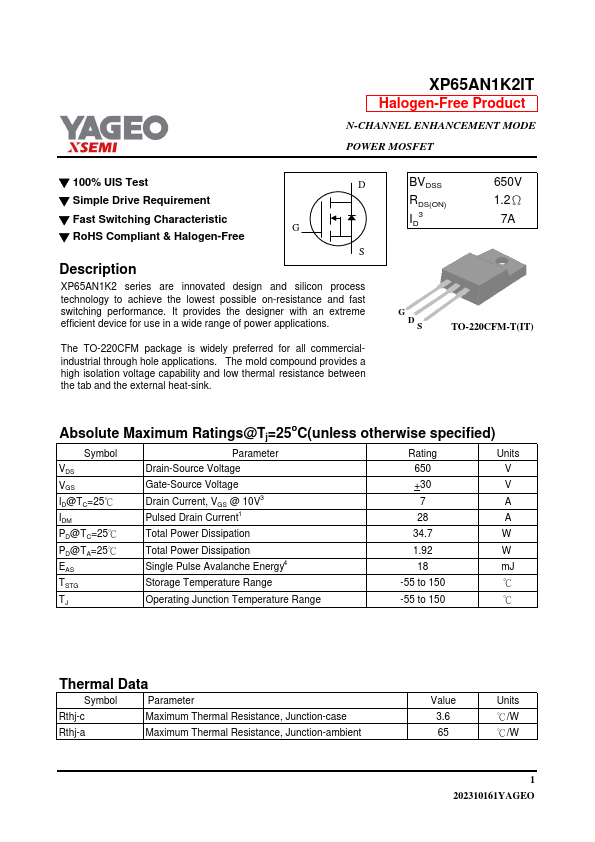

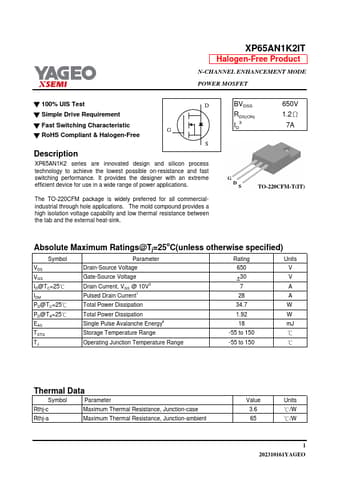

XP65AN1K2IT Datasheet Preview — Preview of XP65AN1K2IT PDF

Datasheet Specifications

Part number: XP65AN1K2IT
Manufacturer: YAGEO
File Size: 267.74 KB
Datasheet: XP65AN1K2IT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 650V 1.2Ω 7A G DS TO-220CFM-T(IT) Absolute
