XP6NA1R2LCXT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA1R2LCXT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼.
XP6NA1R2LC series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

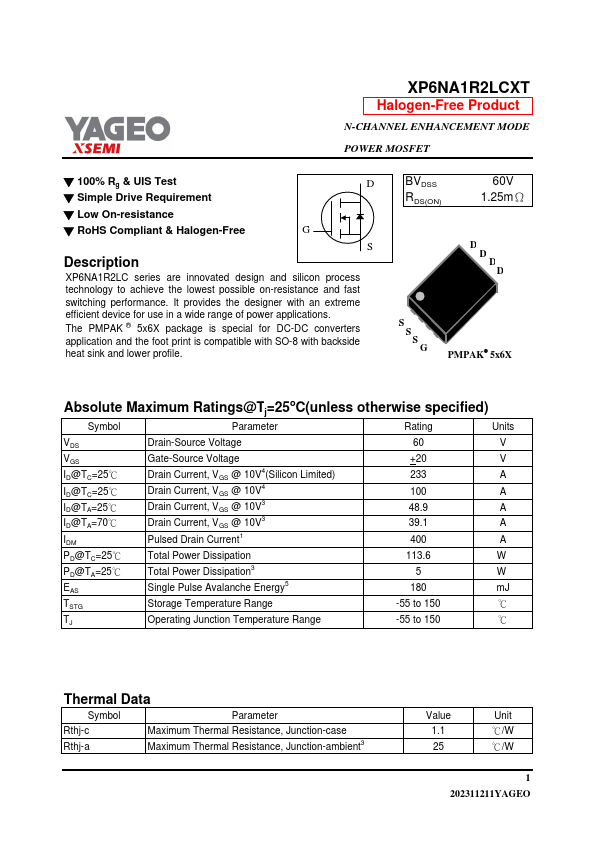

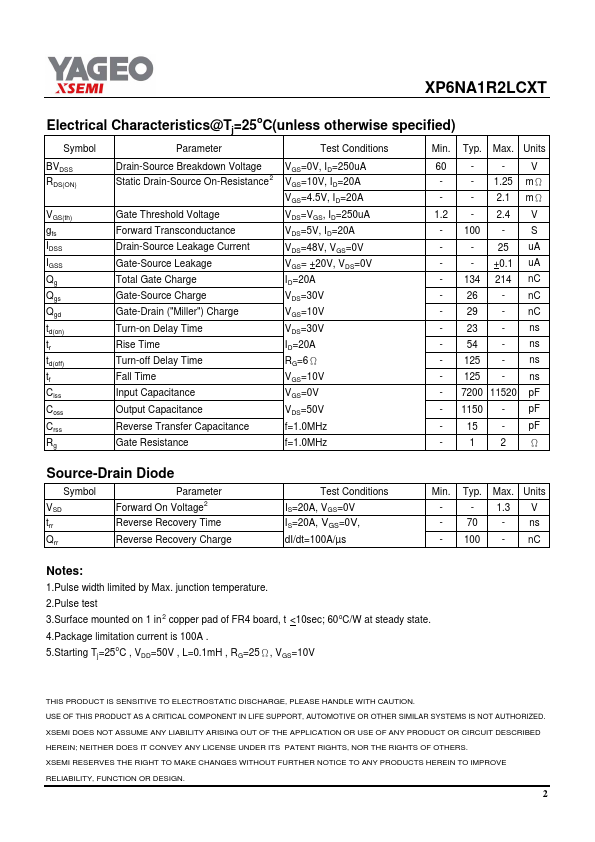

XP6NA1R2LCXT Datasheet Preview — Preview of XP6NA1R2LCXT PDF

Datasheet Specifications

Part number: XP6NA1R2LCXT
Manufacturer: YAGEO
File Size: 264.52 KB
Datasheet: XP6NA1R2LCXT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6X package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 60V 1.25mΩ D D D D S S S G PMPAK® 5x6X Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rati
