XP6NA1R7LCMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA1R7LCMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ 100% Rg & UIS Test ▼ Ultra Low On-resistance.
XP6NA1R7LC series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

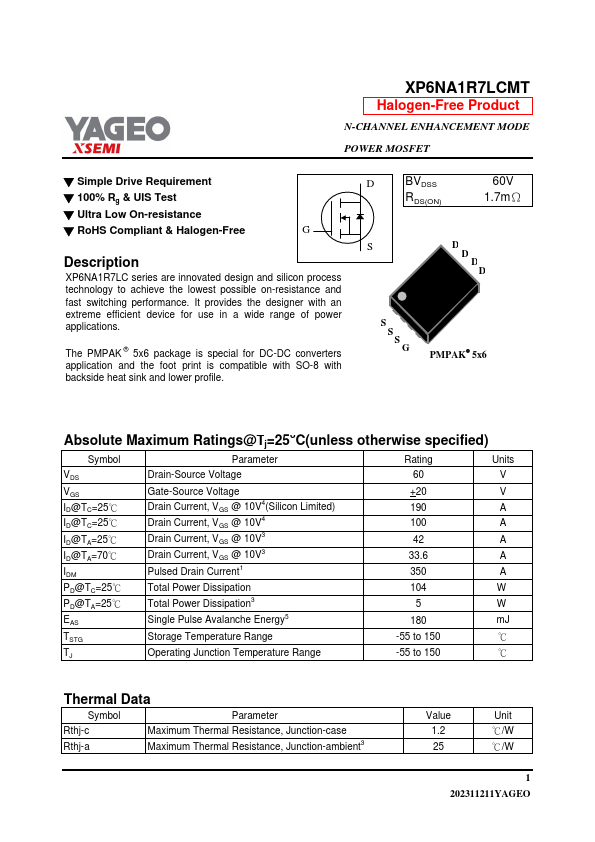

XP6NA1R7LCMT Datasheet Preview — Preview of XP6NA1R7LCMT PDF

Datasheet Specifications

Part number: XP6NA1R7LCMT
Manufacturer: YAGEO
File Size: 324.57 KB
Datasheet: XP6NA1R7LCMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. D BVDSS RDS(ON) 60V 1.7mΩ S D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Paramete
